Aluminium fence profile system
Build a coordinated fence from aluminium extrusions: 76 mm posts, horizontal infill, channel covers and finishing accessories. Choose your layout, then specify the profiles, cutting and finish for your project.
01 / Layouts
Choose a layout. Build your profile list.
Fence system & layout options
Layout references with adjustable slat widths, gaps and finishes. Codes identify a look, not a fixed-size kit; profiles and accessories are confirmed per project.
RA-F02
Horizon
Broad horizontal slats with regular gaps.
Layout concept only · not to scale
Enquire about this style →RA-F03
Fine Line
Narrow slats with repeated open spacing.
Layout concept only · not to scale
Enquire about this style →RA-F04
Crown
Four narrow accent slats above a broad-slat lower section.
Layout concept only · not to scale
Enquire about this style →RA-F05
Midline
A central narrow-slat band between broad upper and lower slats.
Layout concept only · not to scale
Enquire about this style →RA-F06
Rhythm
Alternate broad and narrow slats with matching spacers.
Layout concept only · not to scale
Enquire about this style →RA-F07
Gradient
Uniform slats with gaps changing along the height.
Layout concept only · not to scale
Enquire about this style →RA-F08
Lightline
Lighting profiles at selected heights; diffuser and electrical details reviewed separately.
Layout concept only · not to scale
Enquire about this style →02 / Components
A coordinated set of profiles
Start with posts and infill, then add covers and the accessories your layout requires.
76 × 76 mm posts
Single-channel and three-channel options. Choose by connection direction and material requirements.
Browse profile sections →Horizontal infill profiles
40, 60, 80, 100 and 150 mm widths in the confirmed profile range; reinforced options for 100 and 150 mm sections. Final selection depends on the project.
Browse profile sections →Covers & spacers
One matching cover profile closes channels and can be cut into spacing blocks.
Browse profile sections →Post caps & base trim
Pyramid caps and two-piece base covers finish the illustrated system. Matching base plates and fixings are specified per project.
Assembly →Glass / PVC panel profiles
Side frames with matching upper and lower closures offer a panel-infill option. Confirm panel thickness and bonding details with the final drawings.
Browse profile sections →Lighting profiles
A dedicated extrusion with a slide-in, milky translucent PVC diffuser can be positioned to suit the layout. Electrical components and installation are specified separately.
Browse profile sections →Cross-sections by model
Open an image to view the section. Images do not share a physical scale. Dimensions and fit are subject to the confirmed production drawing; the PVC diffuser is identified separately.
Posts and fixed frames
Posts and fixed frames

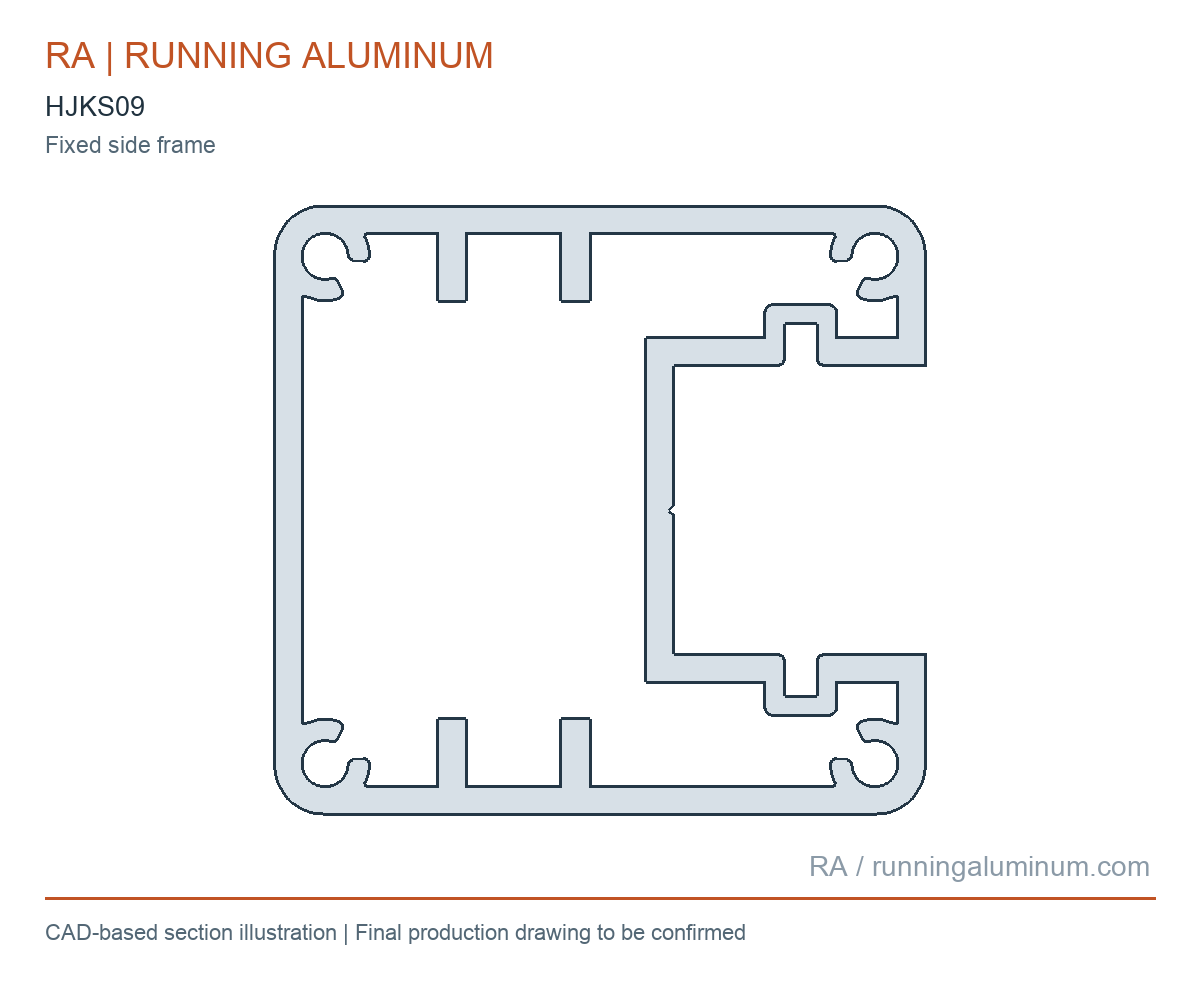

HJKS09
Fixed side frame
Enquire about this profile →Posts and fixed frames

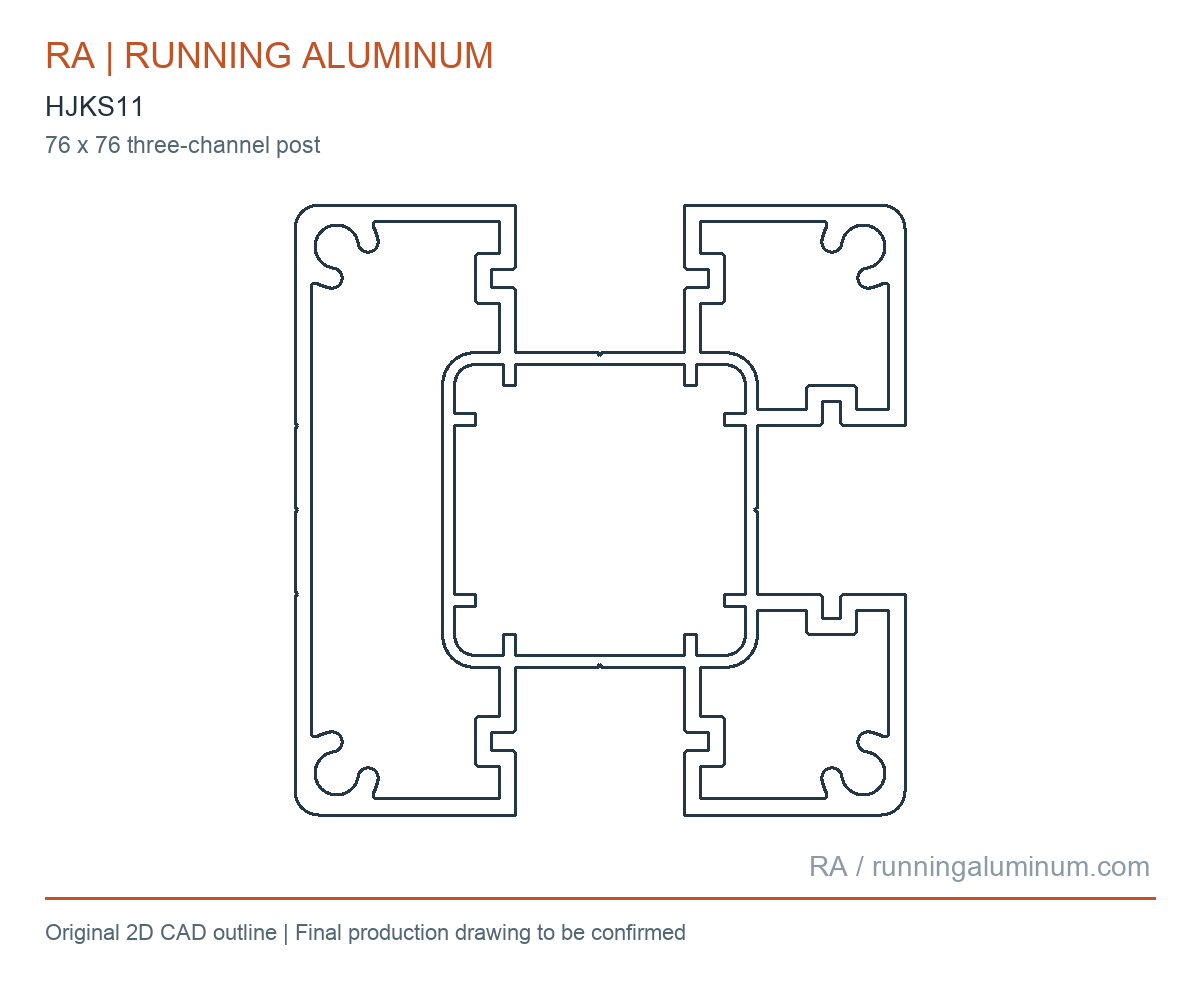

HJKS11
76 x 76 three-channel post
Enquire about this profile →Posts and fixed frames

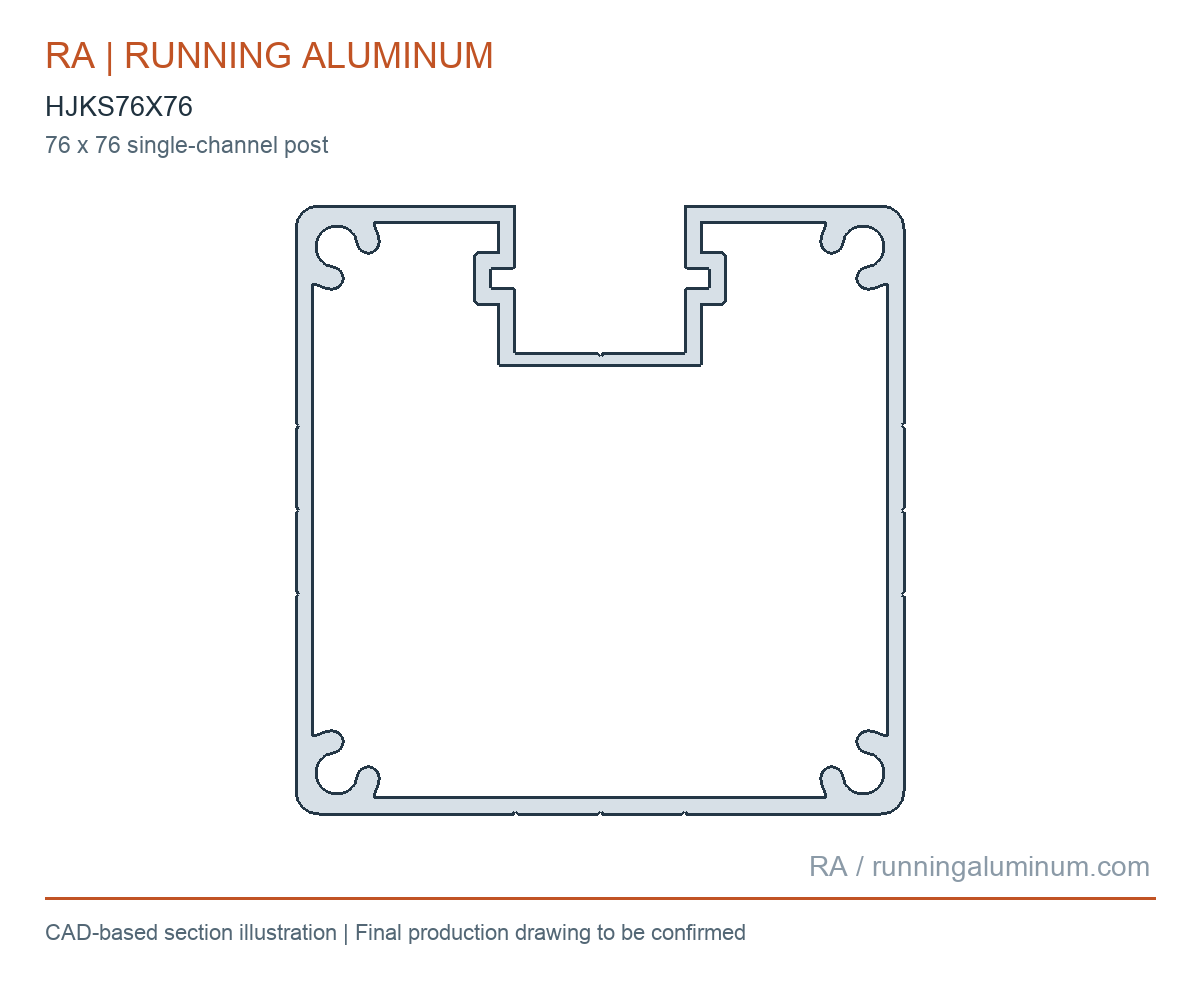

HJKS76X76
76 x 76 single-channel post
Enquire about this profile →Infill profiles
Infill profiles

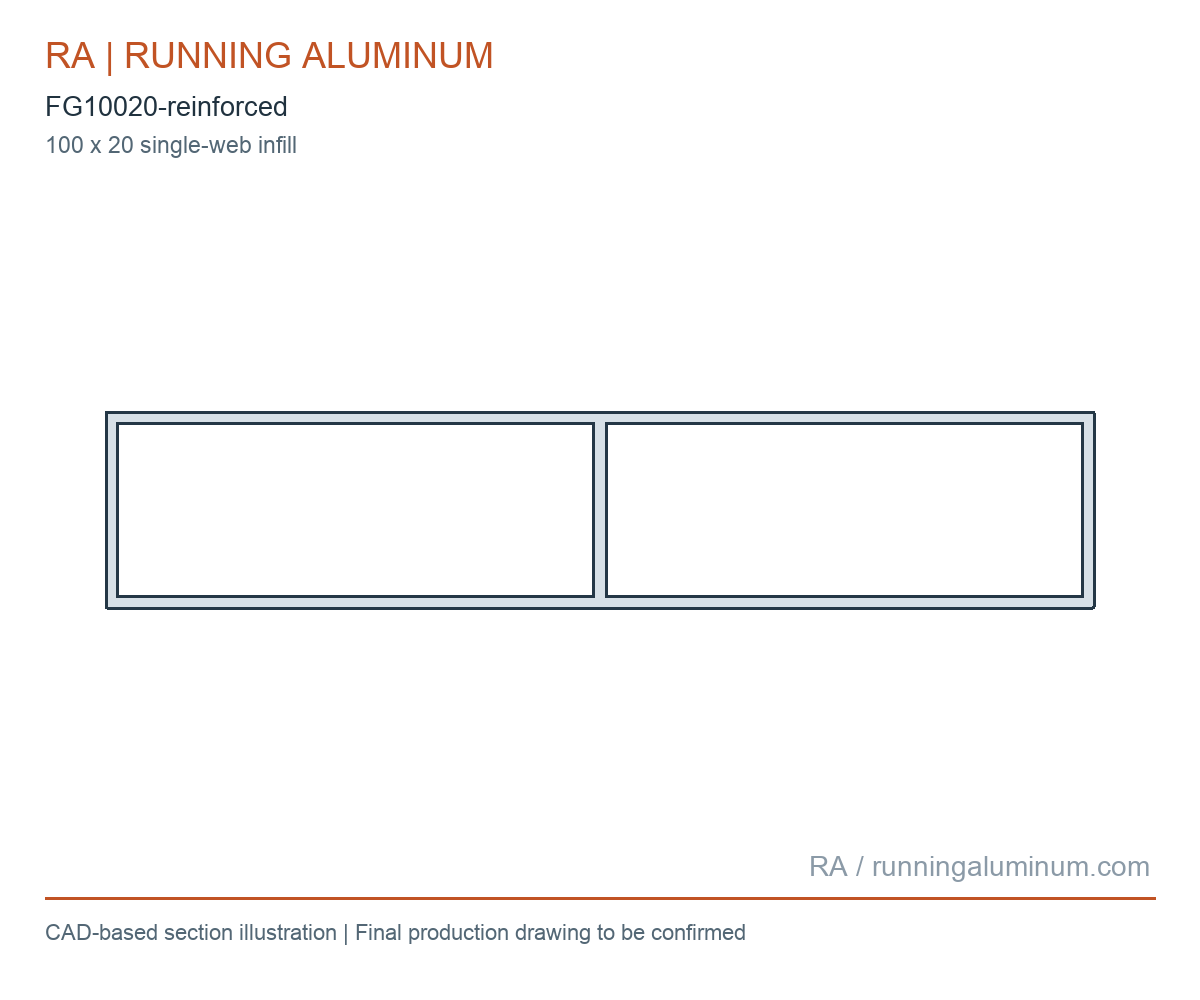

FG10020-reinforced
100 x 20 single-web infill
Enquire about this profile →Infill profiles

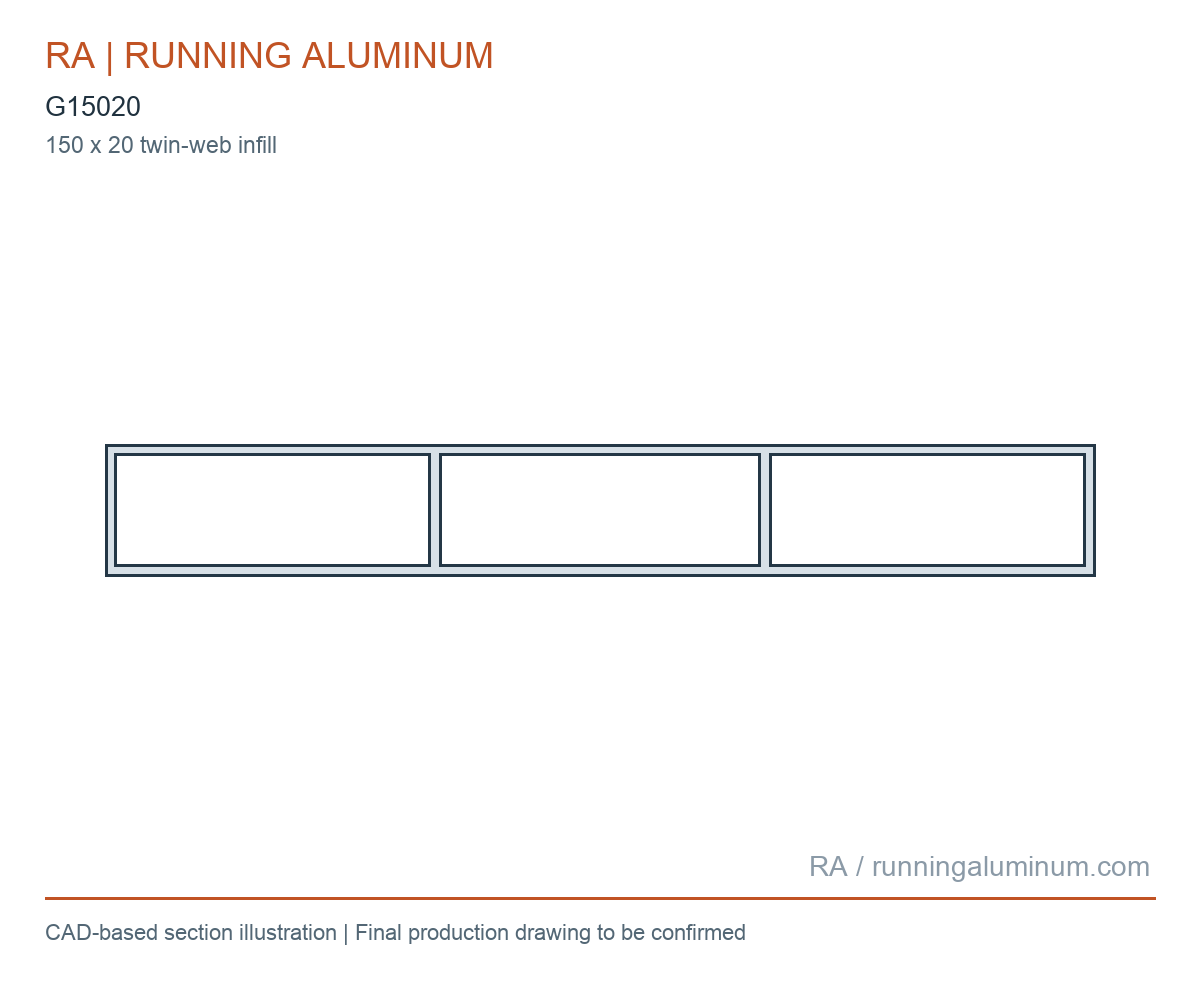

G15020
150 x 20 twin-web infill
Enquire about this profile →Infill profiles

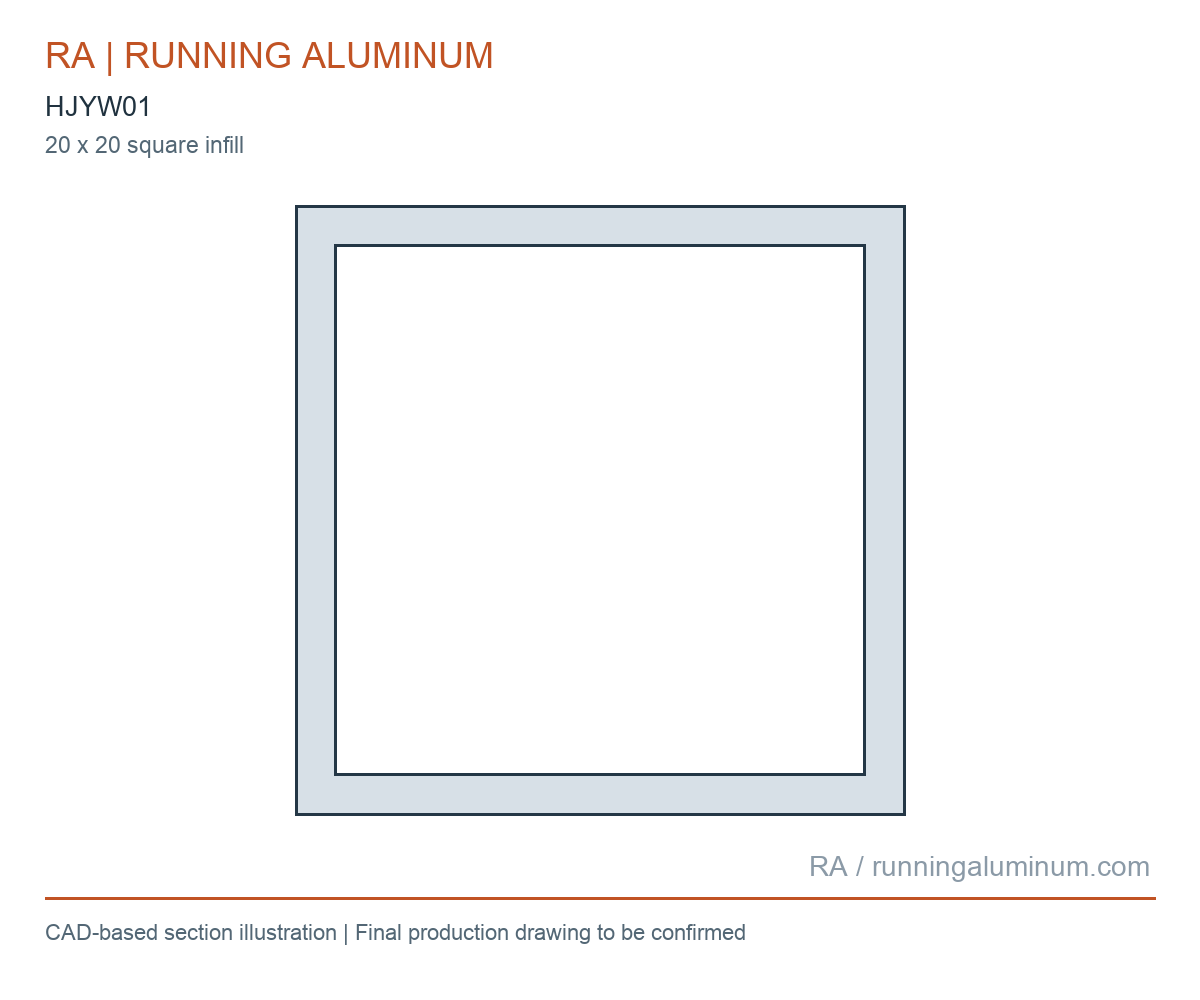

HJYW01
20 x 20 square infill
Enquire about this profile →Infill profiles

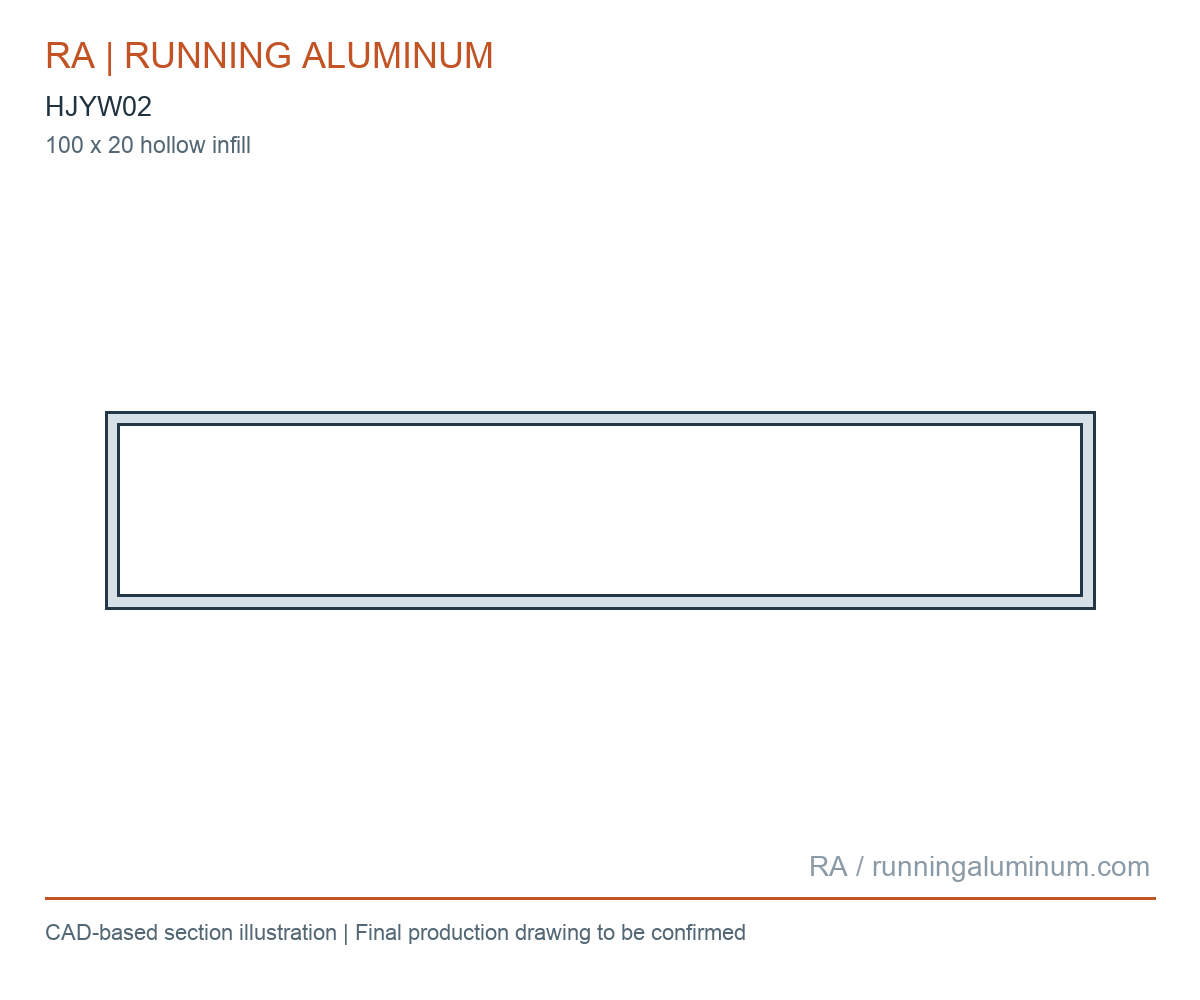

HJYW02
100 x 20 hollow infill
Enquire about this profile →Infill profiles
HJYW03
150 x 20 reinforced infill
Enquire about this profile →Infill profiles

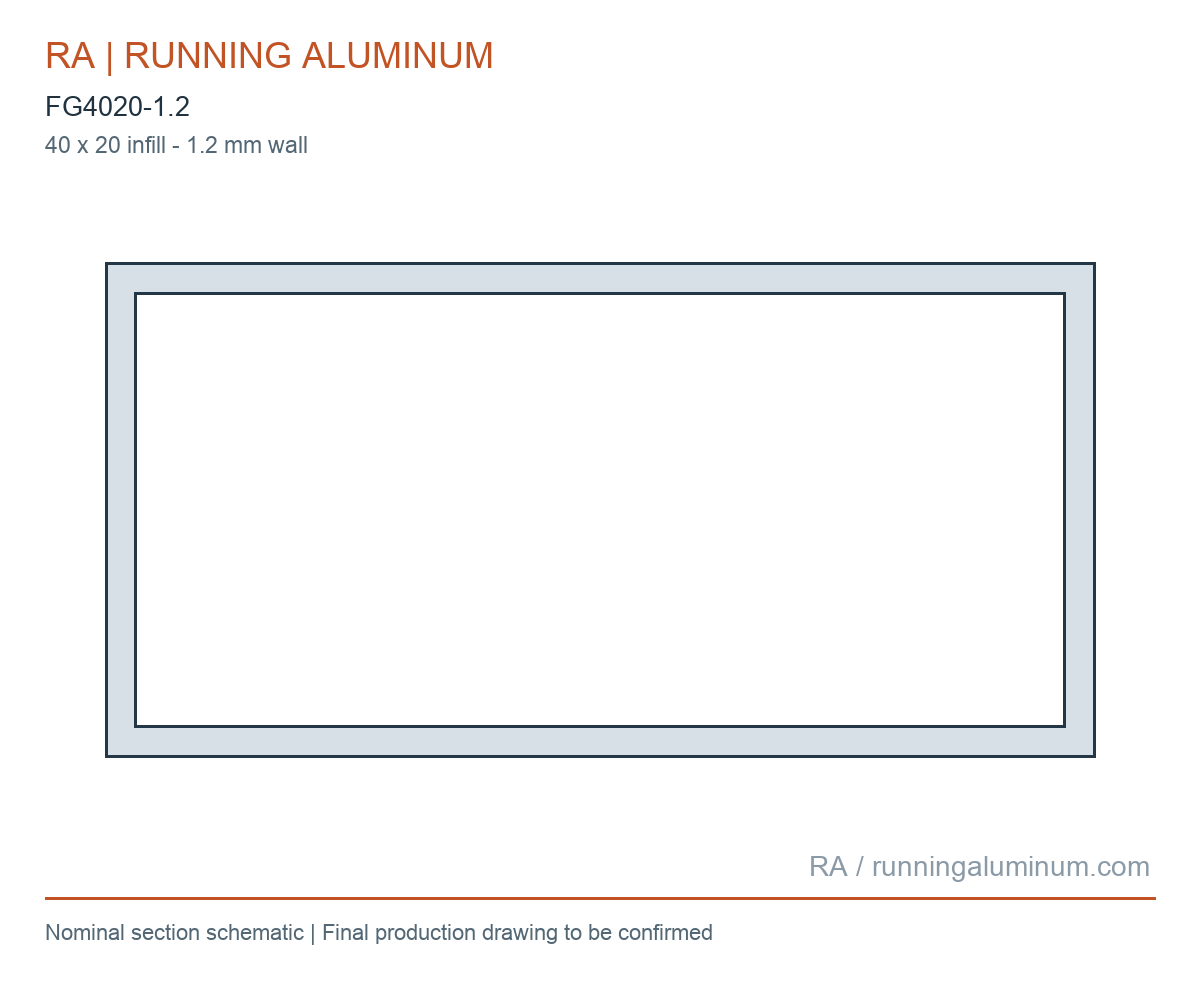

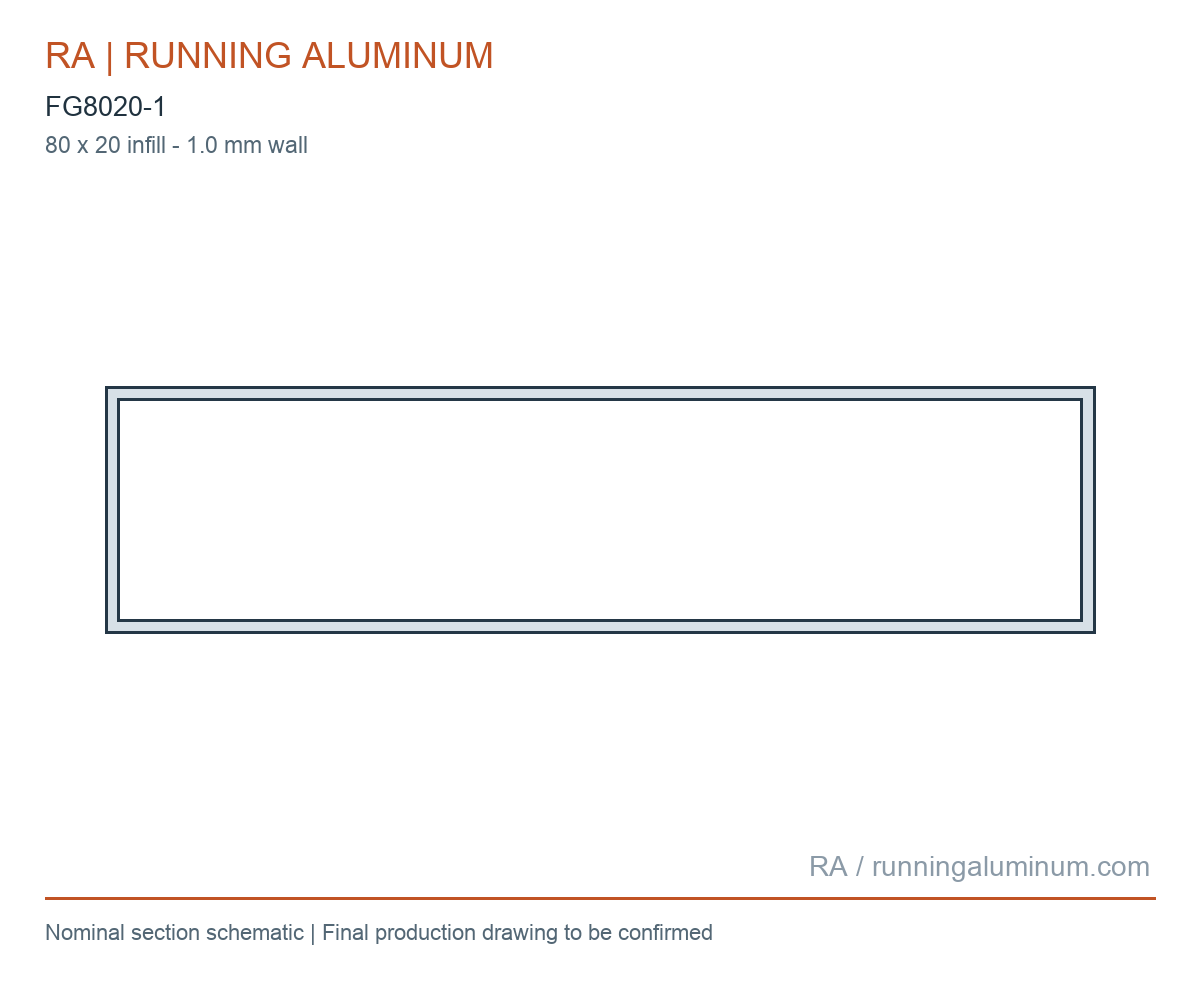

FG4020-1.2
40 x 20 infill - 1.2 mm wall
Enquire about this profile →Infill profiles

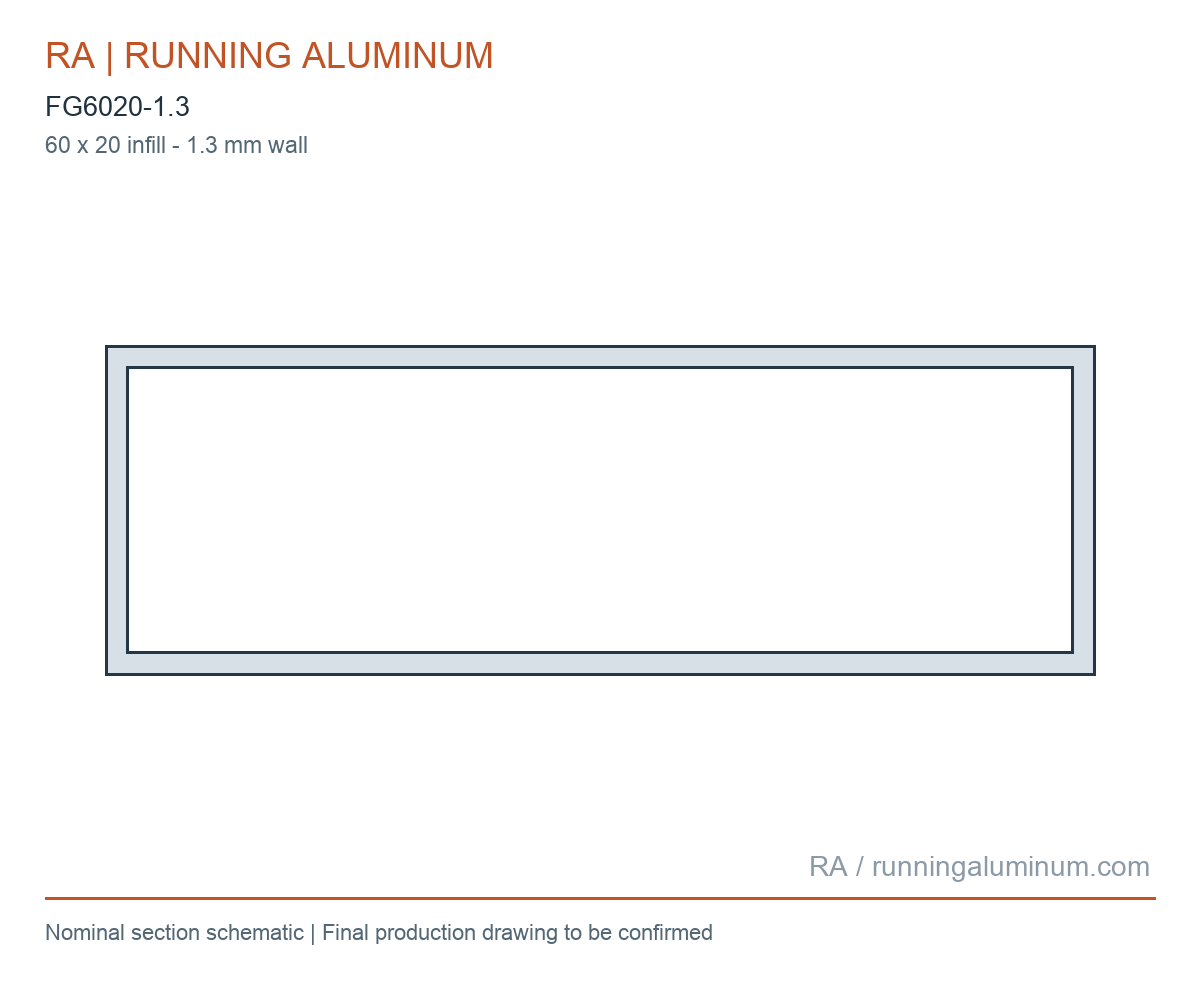

FG6020-1.3
60 x 20 infill - 1.3 mm wall
Enquire about this profile →Infill profiles
FG8020-1
80 x 20 infill - 1.0 mm wall
Enquire about this profile →Frames, closures and accessories
Gate frames and stops

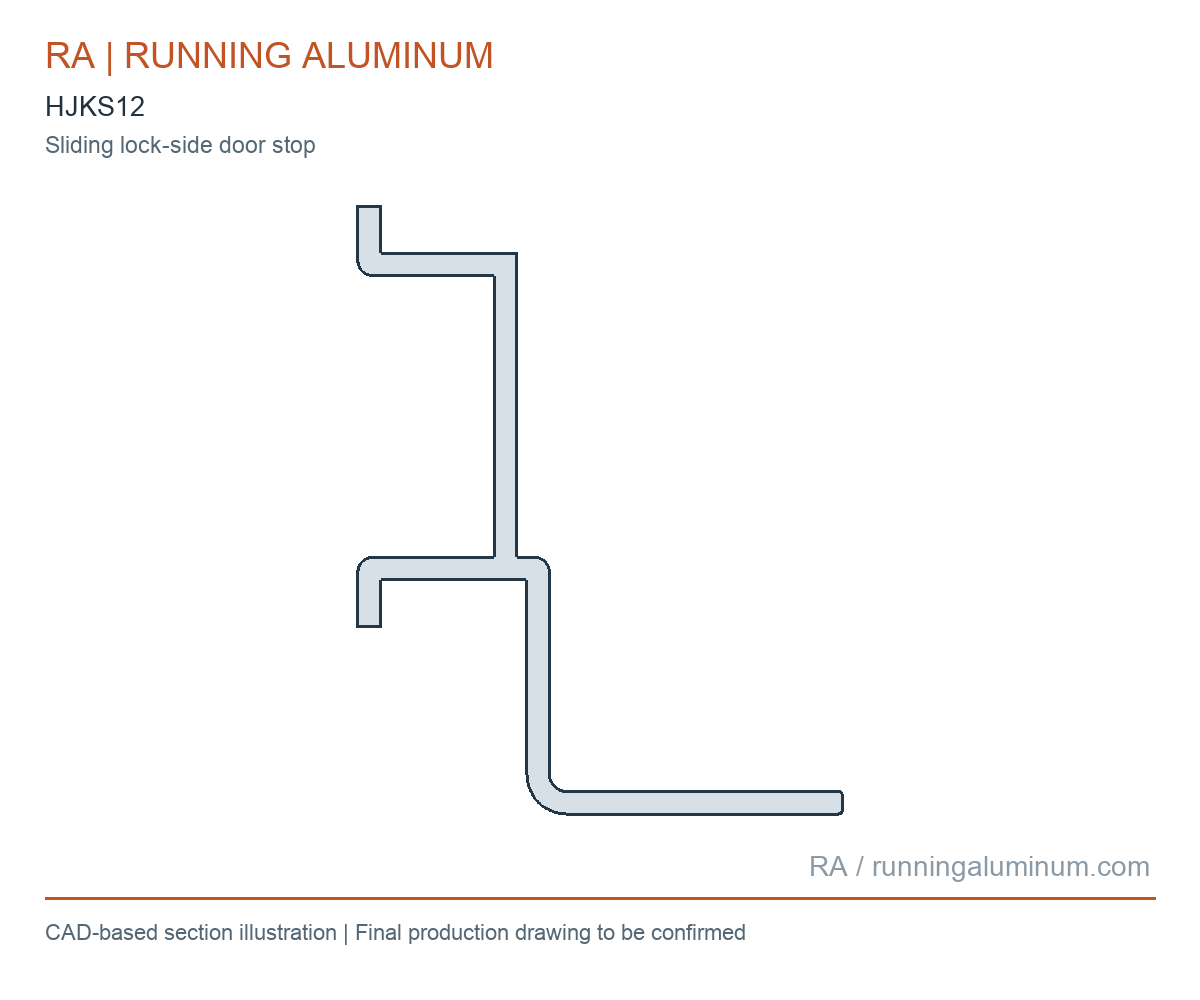

HJKS12
Sliding lock-side door stop
Enquire about this profile →Gate frames and stops

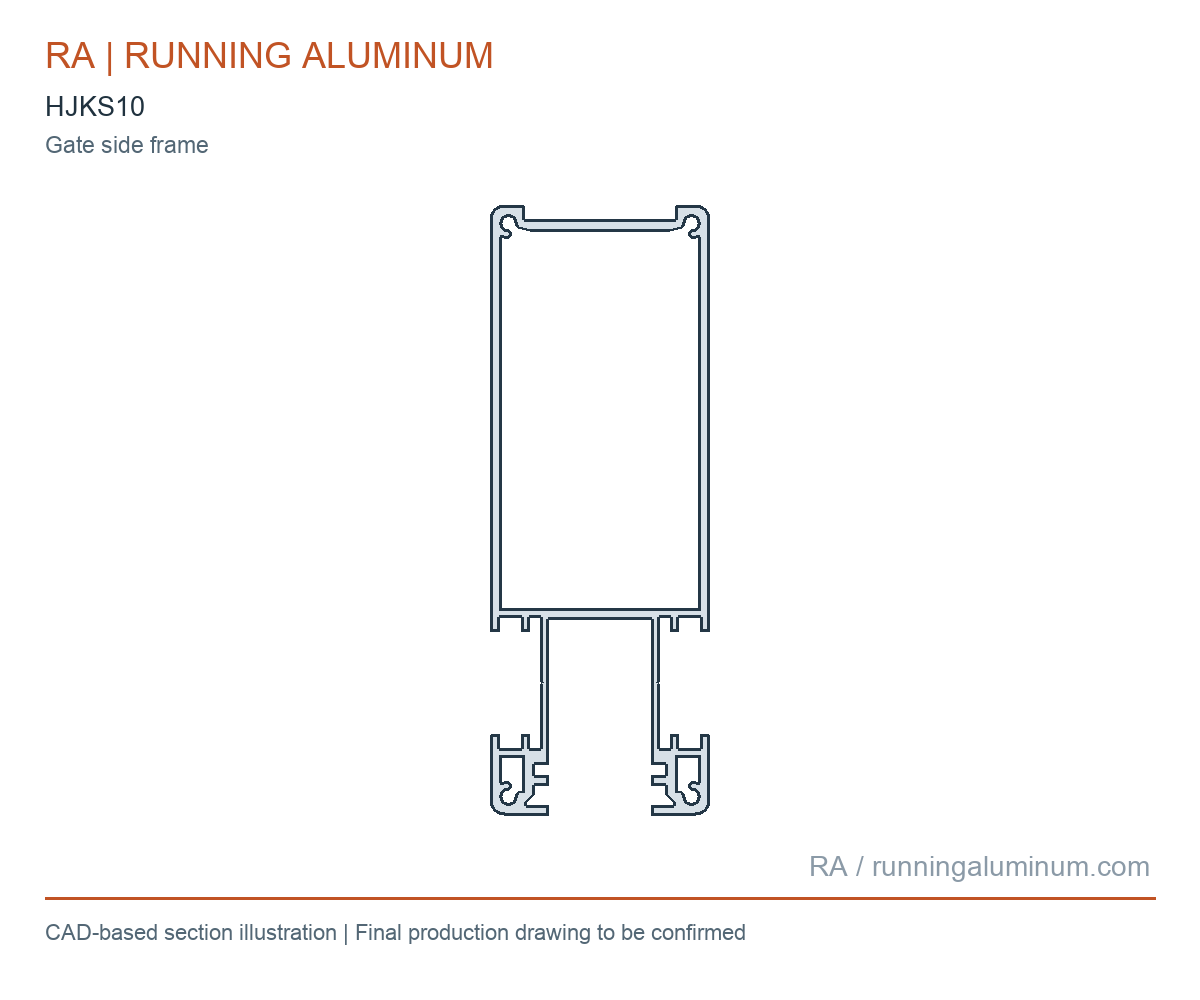

HJKS10
Gate side frame
Enquire about this profile →Glass / panel profiles

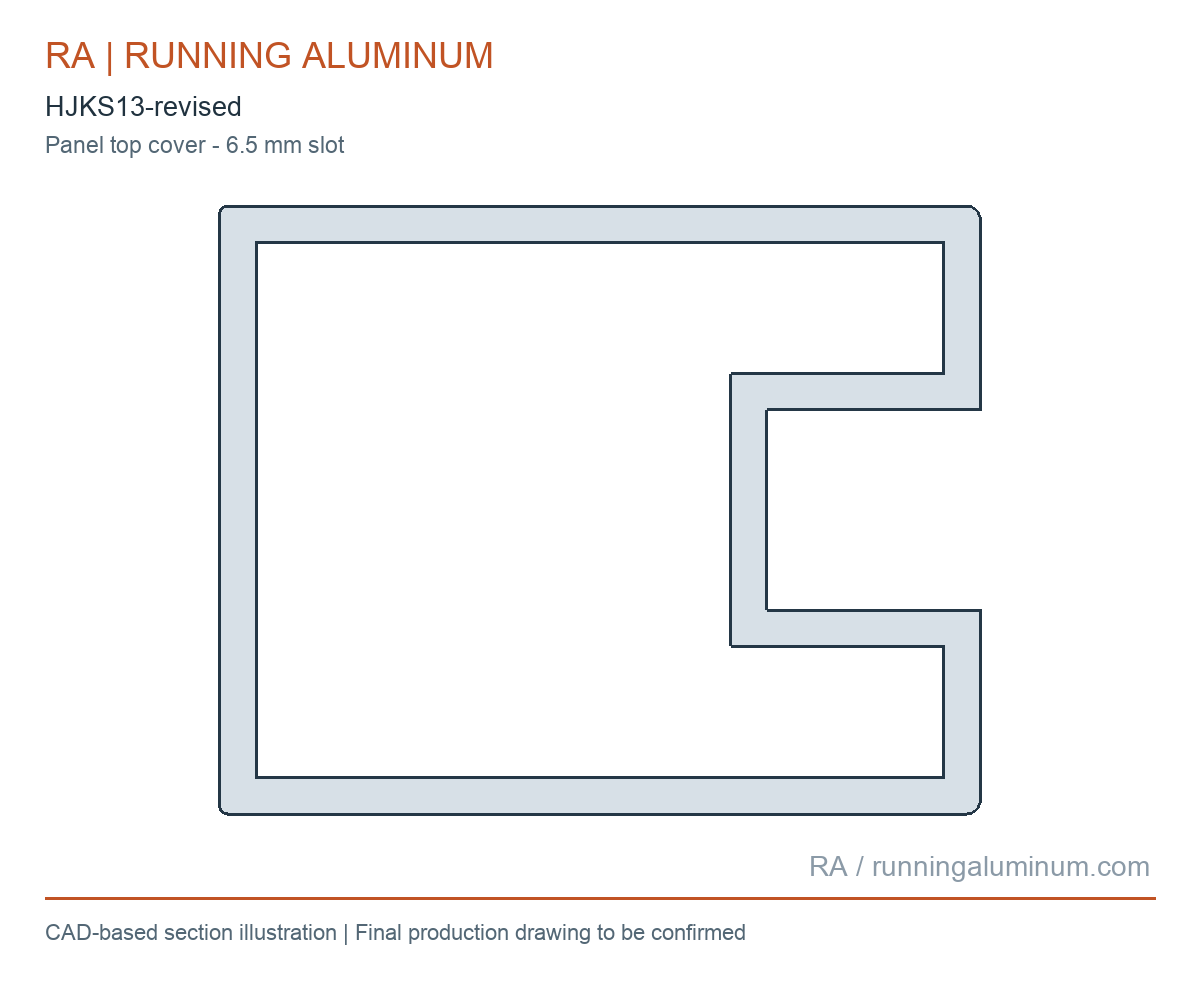

HJKS13-revised
Panel top cover - 6.5 mm slot
Enquire about this profile →Glass / panel profiles

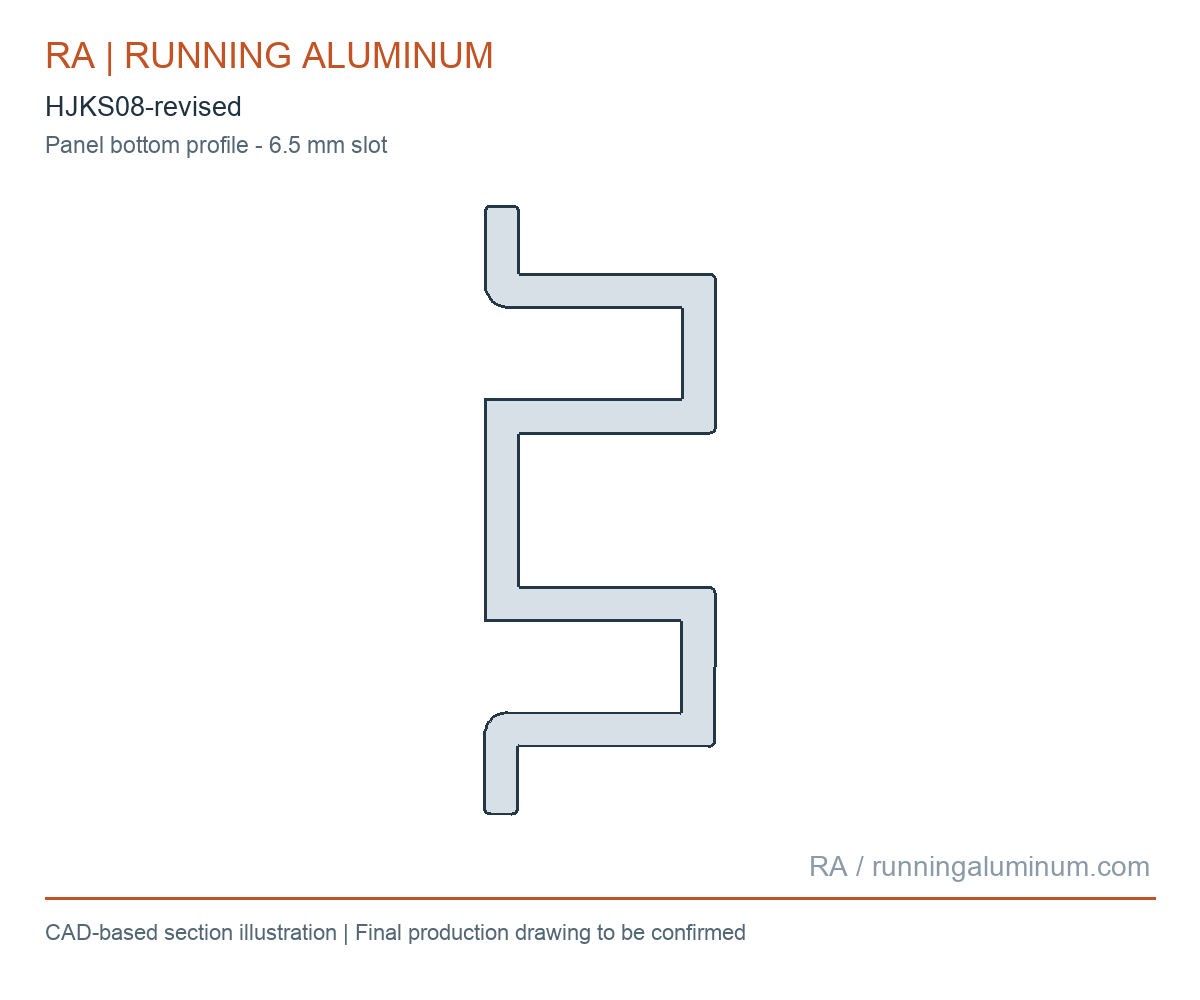

HJKS08-revised
Panel bottom profile - 6.5 mm slot
Enquire about this profile →Covers and spacers

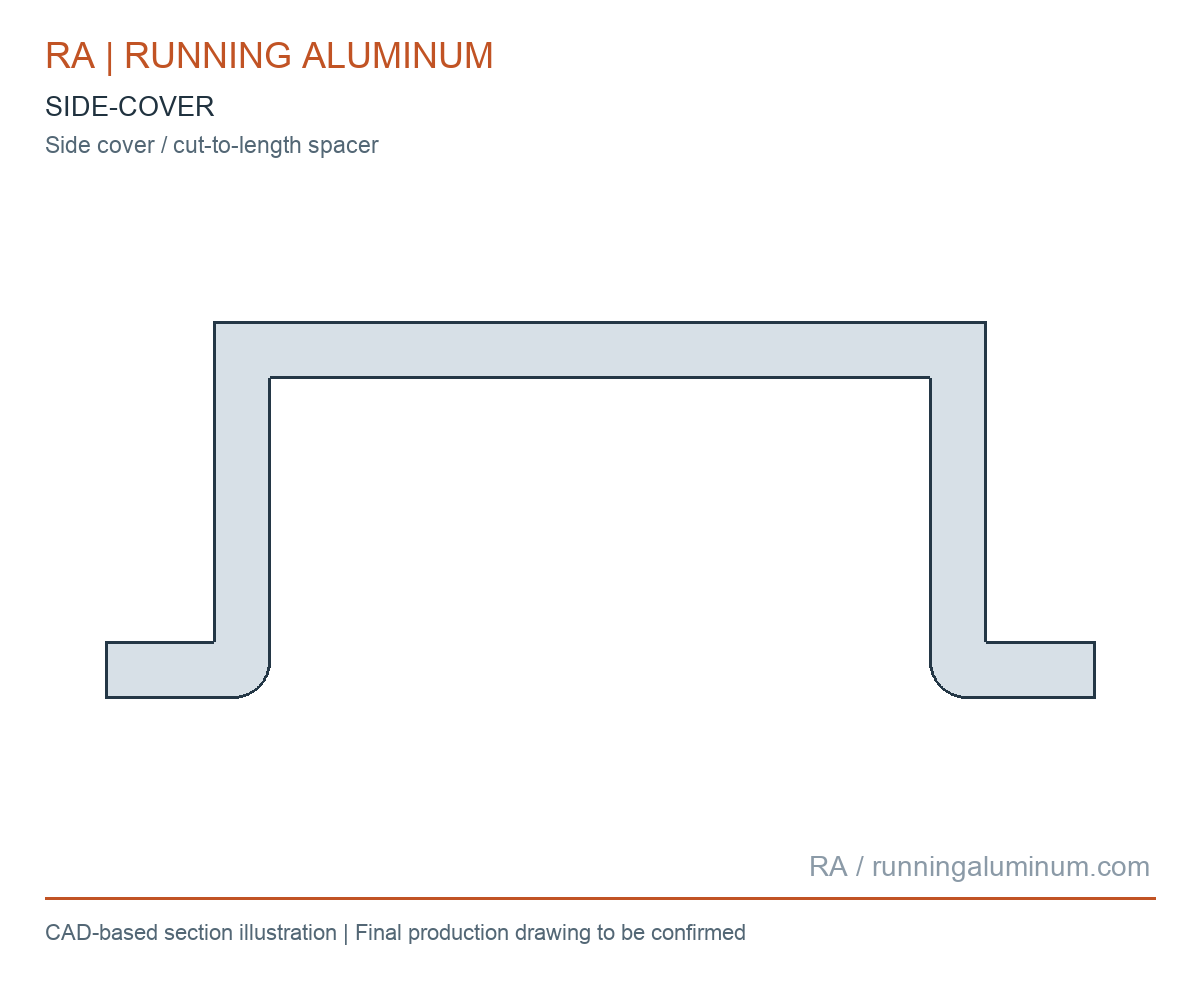

SIDE-COVER
Side cover / cut-to-length spacer
Enquire about this profile →Lighting profile and PVC diffuser

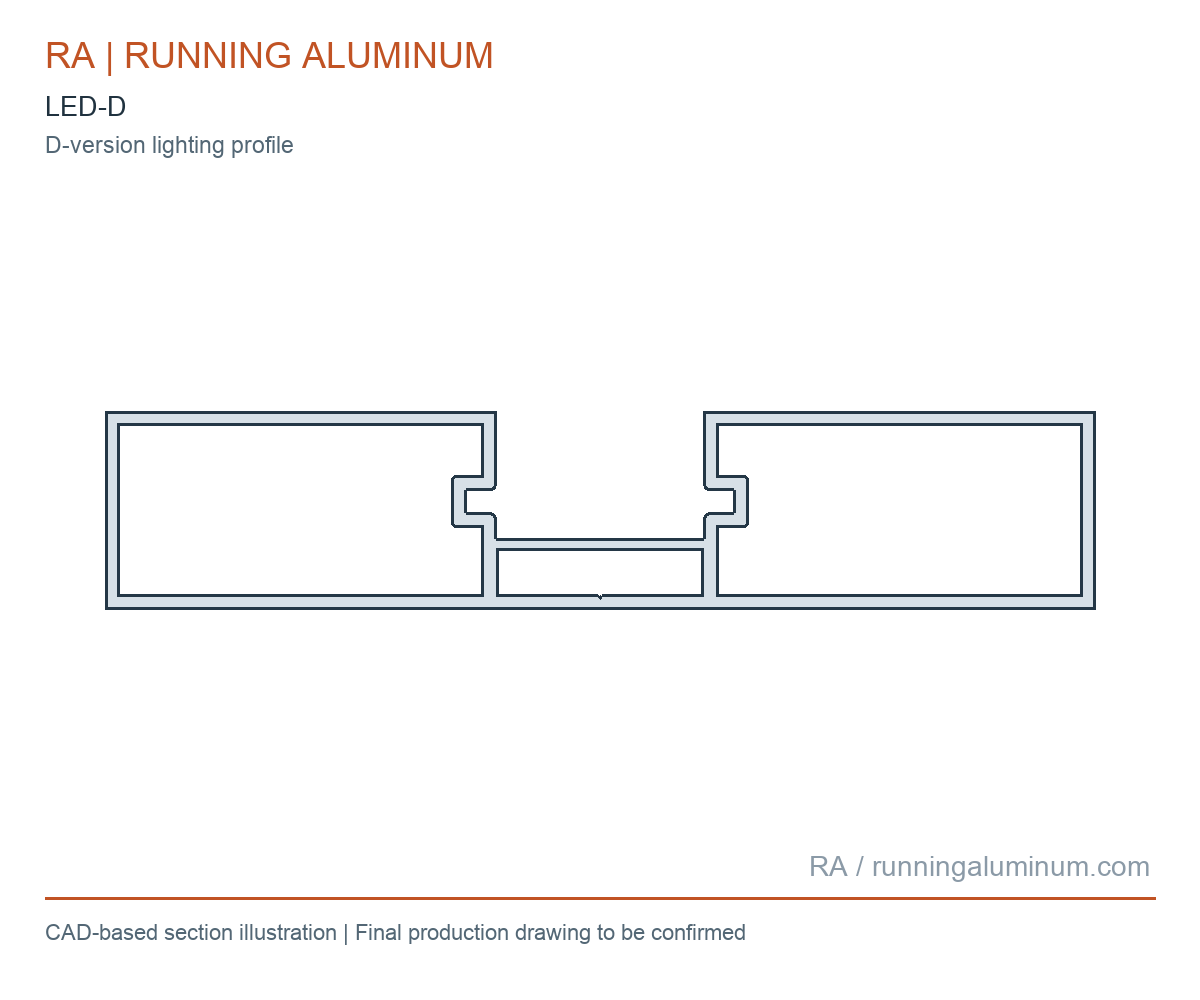

LED-D
D-version lighting profile
Enquire about this profile →Lighting profile and PVC diffuser

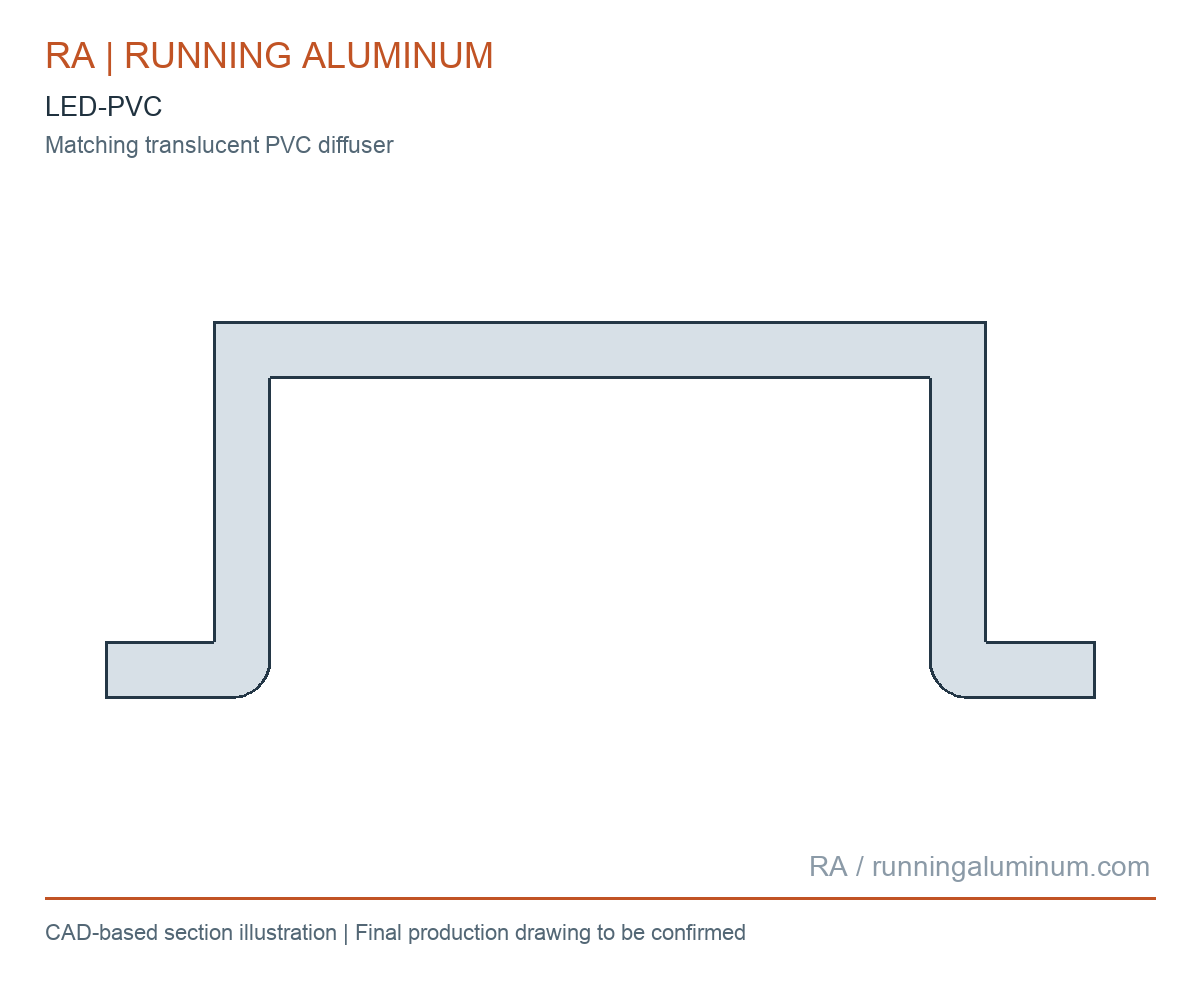

LED-PVC
Matching translucent PVC diffuser
Enquire about this profile →04 / Assembly
Watch the system come together

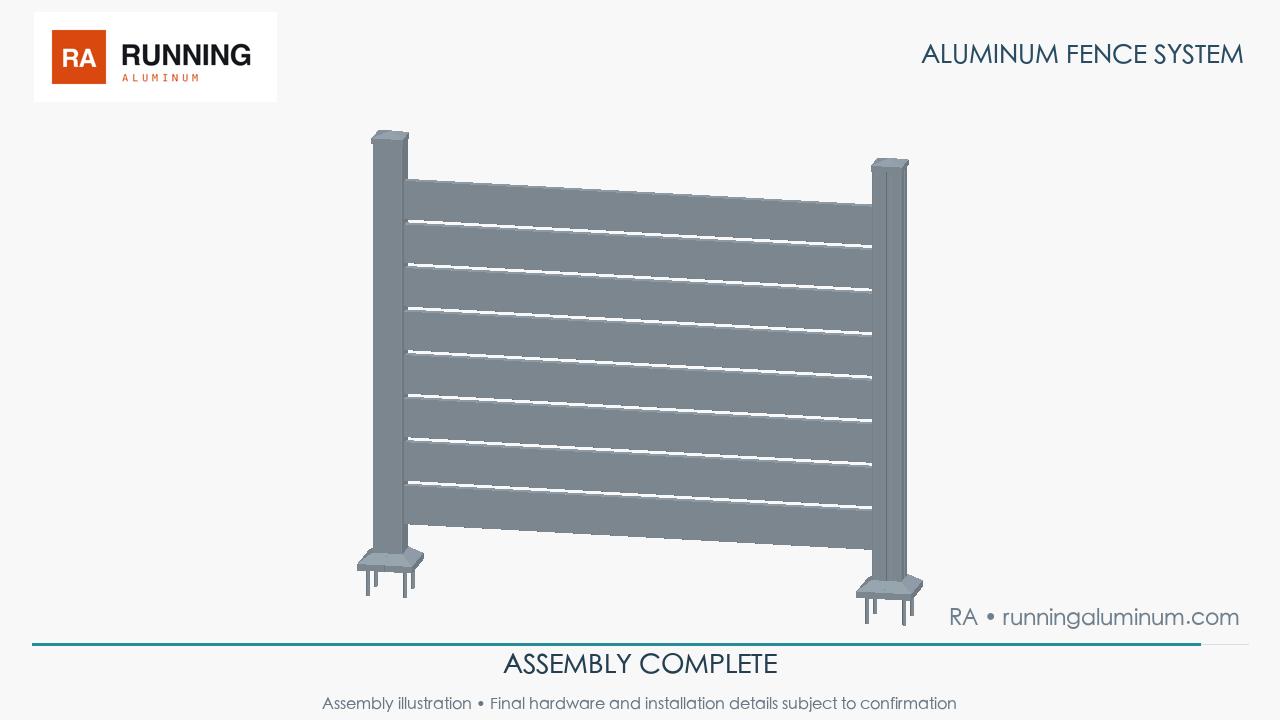

CAD assembly illustration, not installation instructions. Accessory dimensions, fixings and site requirements must be confirmed for the order.
Watch on YouTube ↗Read the assembly sequence
- Select the post arrangement and base fixing for the site.
- Arrange infill profiles and cut spacers for the chosen gaps.
- Review top and bottom fixing, channel covers and caps.
- Confirm accessory dimensions and installation details before production.
Start with the profile. Add the processing you need.
Order aluminum profiles and combine the operations your application requires in the same quotation.
Small-section extrusion
Small cross-section aluminum profiles for compact designs. Send the section drawing, alloy, wall thickness and required length for a feasibility review.
Small-batch color anodizing
Blue, red, yellow, green, purple and black color options for small-batch projects. Specify the quantity per color and provide a color sample or reference.
Processing to your drawing
Cutting, hole milling, drilling, welding and stretch bending can be quoted with your profiles. Include hole positions, bend geometry and assembly requirements.
Minimum section size, wall thickness, batch quantity and processing feasibility are confirmed from your drawing. Anodized shades depend on alloy, surface condition and sample approval; white finishes require confirmation of the finishing process.
For your quotation: section drawing · quantity by profile and color · cut lengths · machining or bending drawing · finish reference.
06 / Quotation
Prepare a useful enquiry
- Layout: overall height, bay widths and connection directions
- Profiles: model codes, quantities and cut lengths
- Appearance: infill widths, gaps, finish and colour sample
- Processing: holes, cuts, bending and matching accessories
- Delivery: destination and requested schedule
Before you specify the system
Can I mix widths and gaps?
Yes. Wide and narrow infill can be combined, with close-packed and spaced areas in the same bay. Spacers are cut from the matching channel-cover profile.
Which post should I choose?
The 76 × 76 mm single-channel post suits a single connection direction. The three-channel post supports different connection directions. Confirm the layout and fixing requirements for the project.
Can the system use glass or PVC panels?
HJKS09 side frames pair with HJKS13 upper and HJKS08 lower profiles. The confirmed revised slots are 6.5 mm; panel thickness, bonding and fit must be reviewed together.
Are gate hardware and installation dimensions fixed?
No. Gate profile sections are shown for selection. Hinges, locks, nut plates and project fixing details need confirmation; the illustrations are not an installation manual.
Can I order profiles with machining and colour finishing?
Send the section, quantities, cut lengths and finish reference. Cutting, drilling, milling and other processing can be reviewed with the profile order. MOQ and lead time are confirmed after review.
