Small-section extrusion
Small cross-section aluminum profiles for compact designs. Send the section drawing, alloy, wall thickness and required length for a feasibility review.
Products · 04

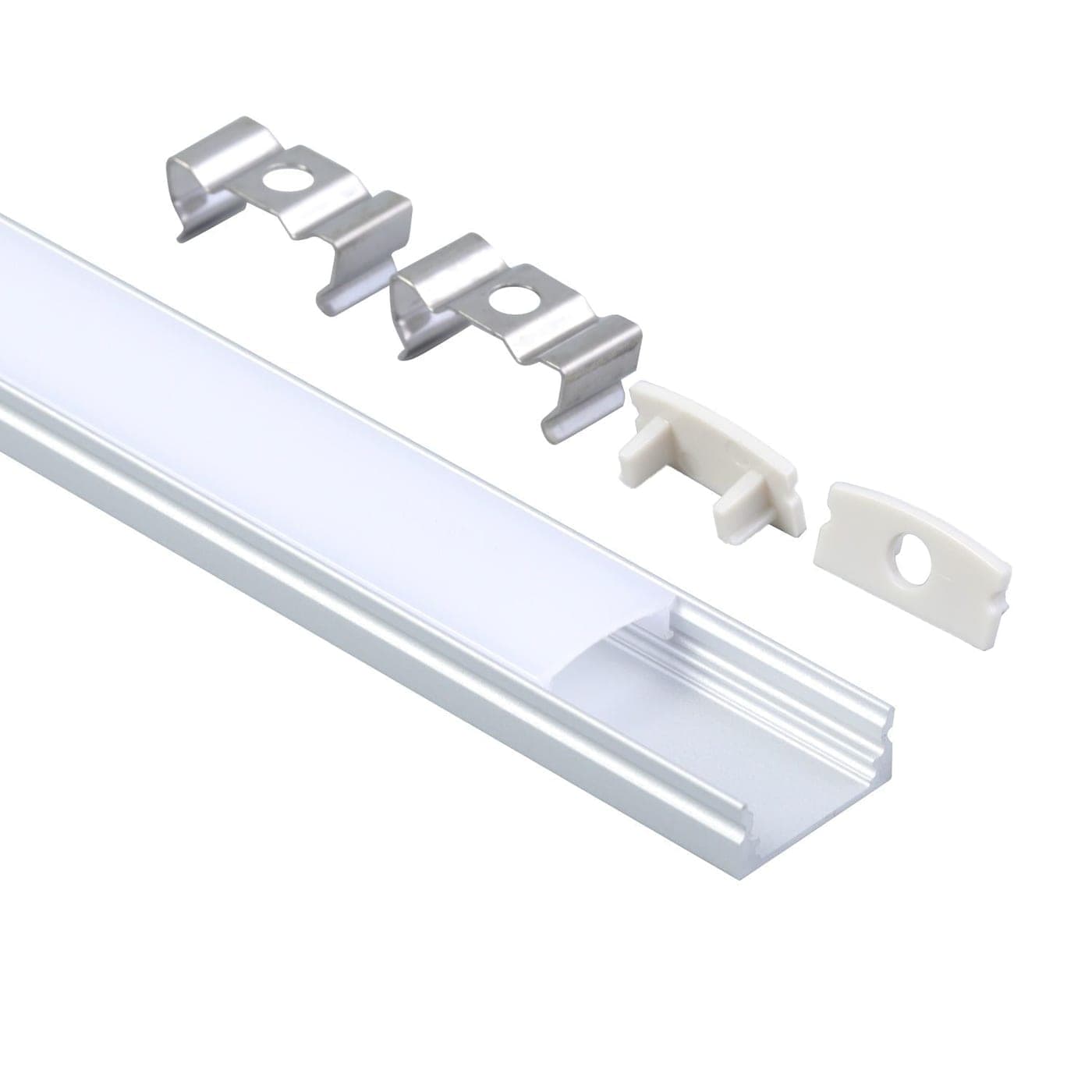

LED channels
LED channel bodies extruded around your strip and machined to your fixture lengths.
Start with the profile. Add the processing you need.
Order aluminum profiles and combine the operations your application requires in the same quotation.
Small-batch color anodizing
Blue, red, yellow, green, purple and black color options for small-batch projects. Specify the quantity per color and provide a color sample or reference.
Processing to your drawing
Cutting, hole milling, drilling, welding and stretch bending can be quoted with your profiles. Include hole positions, bend geometry and assembly requirements.
Minimum section size, wall thickness, batch quantity and processing feasibility are confirmed from your drawing. Anodized shades depend on alloy, surface condition and sample approval; white finishes require confirmation of the finishing process.
For your quotation: section drawing · quantity by profile and color · cut lengths · machining or bending drawing · finish reference.
01Have these ready
Six things that turn a slow quote into a fast one.
01
Channel drawing or sample
Defines the cavity and the mounting we must reproduce
02
LED strip width and height
The internal cavity is extruded around these two numbers
03
Diffuser / cover requirement
Decides whether the cover ships with the channel
04
Mounting type — recessed, surface, suspended
Each mounting points at a different profile family
05
Cut lengths and quantity
Feeds the cut plan and the packing
06
Anodized colour or mill finish
Fixes surface and appearance for visible runs
02Where it's used

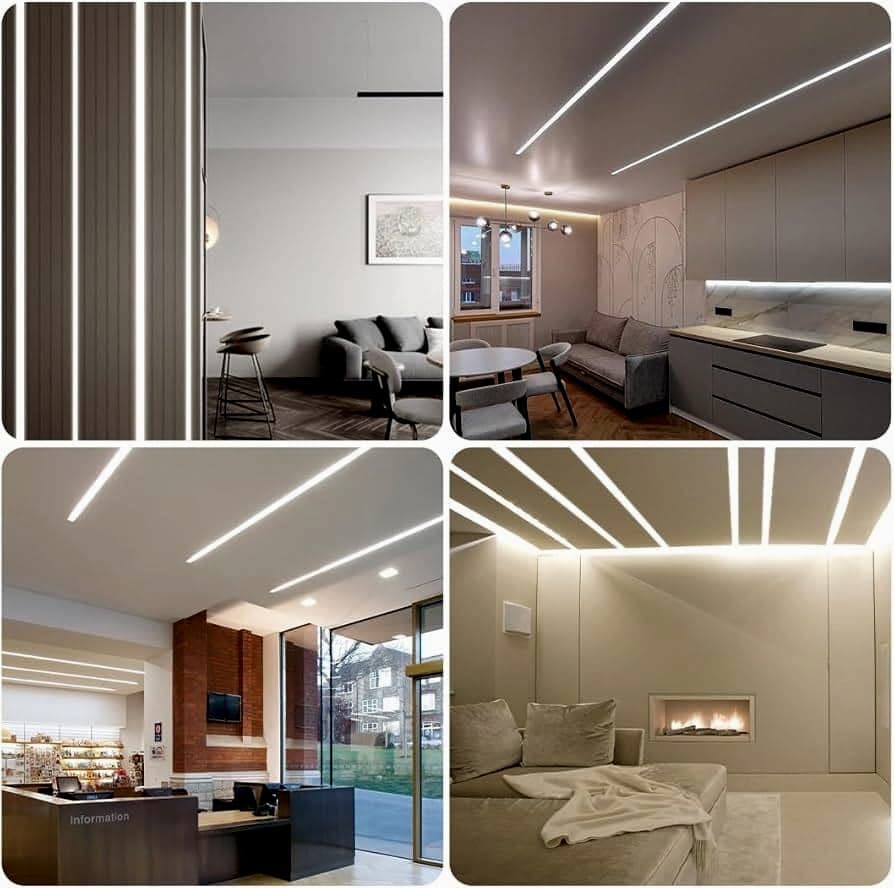

Linear luminaires
Recessed, surface and pendant channels with end machining for caps and feeds.

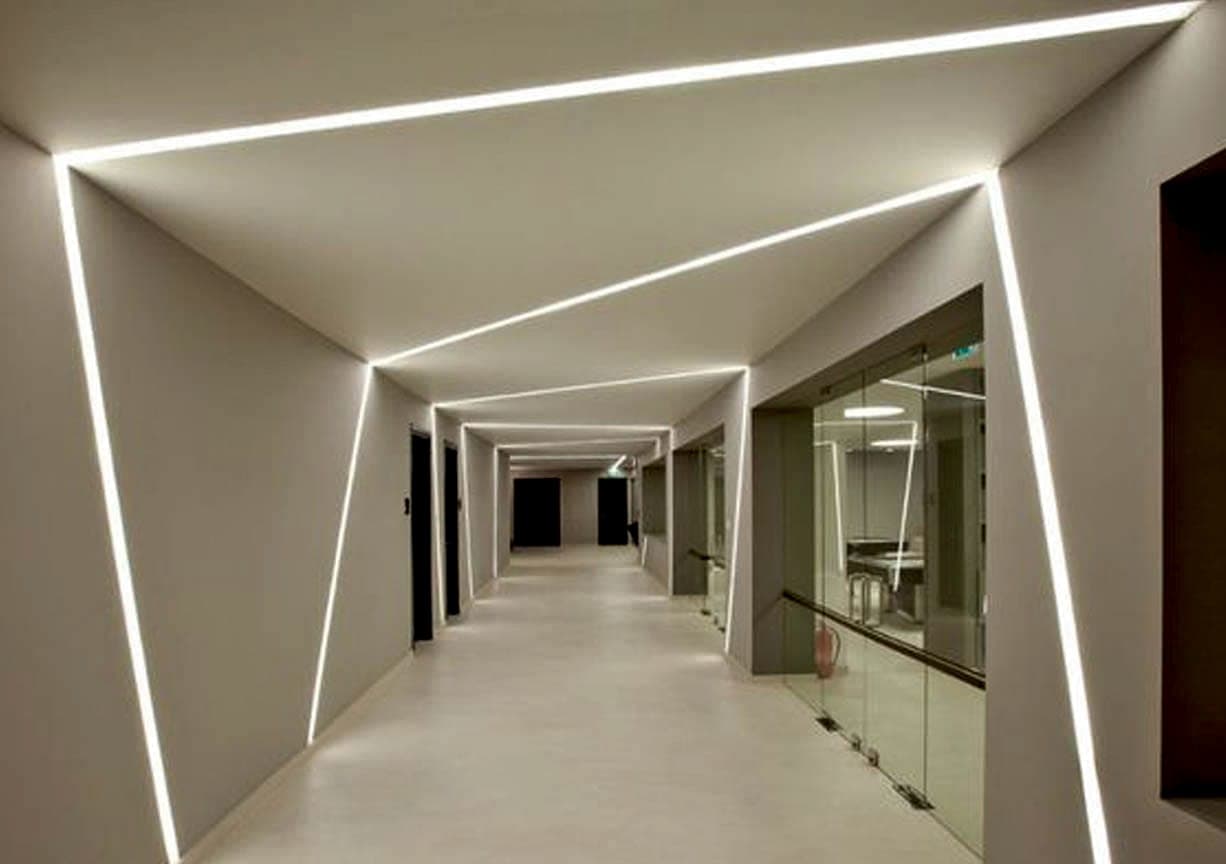

Retail & display lighting
Shelf, cove and signage housings cut to the display dimensions.

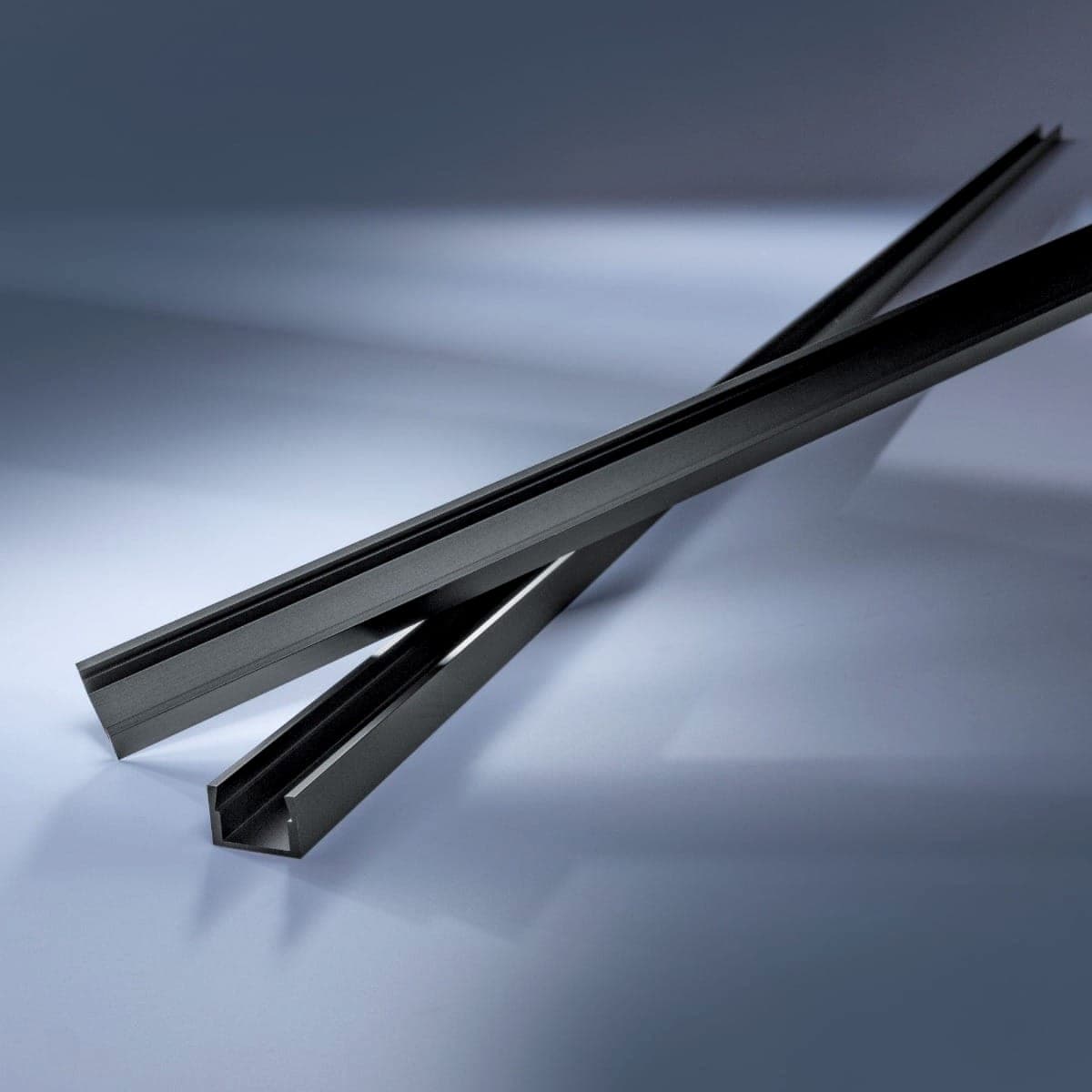

OEM luminaire bodies
Extrusions machined, anodized and packed as luminaire components.
03Specifications
| Parameter | Working range |
|---|---|
| Alloy grades | 6063 / 6060 |
| Temper | T5 |
| Profile length | standard stock lengths / to your cut |
| Wall thickness | from 0.7 mm (0.3 mm on small sections →) |
| Diffuser cover | supplied on request |
| Dimensional tolerance | to EN 12020 / ±0.1 mm |
| Surface finish | Mill / Anodized (silver, black, custom) |
04Three confirmations before production
01
Can we make it?
The cavity is checked against your strip, the mounting against your fixture, the wall against the press.
02
Machining & finish agreed
Fixture lengths, end machining, the diffuser (if supplied) and the anodize are all named in the quote.
03
Proof before shipping
Cavity dimensions are gauged and finish or material certificates issued where required.
Machining and surface treatment are coordinated according to project requirements — CNC & machining · Finishing.
05Quality & certification
Heat and lot numbers follow every batch
Dimensional reports measured against the signed drawing
Coating-thickness and salt-spray checks on finished surfaces
Third-party inspection arranged on request
ISO 9001:2015 / GB/T 19001-2016
Quality Management System
- Certified scope
- Machining and Surface Treatment of Aluminum Products (Anodizing)
- Certificate no.
- 21826Q00612R101
- Valid until
- 28 Jun 2029
ISO 14001:2015 / GB/T 24001-2016
Environmental Management System
- Certified scope
- Machining and Surface Treatment of Aluminum Products (Anodizing) and related environmental management activities
- Certificate no.
- 21826E00416R101
- Valid until
- 28 Jun 2029
Issued by Shanghai Sailway Certification Co., Ltd. — accredited under CNAS / IAF MLA.
These certificates are held by our manufacturing plant.
Full stamped certificates are available on request. Numbers can be verified with the issuer or through CNAS.
06Frequently asked questions
Channel and diffuser together, or channel only?
Either — many customers take the extrusion with a matched diffuser so the pair clips correctly out of the box. Name the strip and cover you build with, or send a sample, and both get quoted on one line.
Can channels arrive cut to our fixture lengths?
Yes, and with the end machining done — that work stays inside this plant, so the channel that reaches you drops straight into the fixture. Lengths and quantities in the RFQ are enough.
How do you make sure the strip actually fits?
The cavity is extruded around your strip's width and height, and the fit is confirmed on a sample before the volume run — so the strip seats and the cover clips before thousands of metres exist.
What finish for channels that stay visible?
Anodized silver, black or a custom shade is the usual call for architectural runs — the film wears well and reads cleanly. Mill finish is there when the channel hides in a cove or cabinet.
