Small-section extrusion
Small cross-section aluminum profiles for compact designs. Send the section drawing, alloy, wall thickness and required length for a feasibility review.
Products · 01

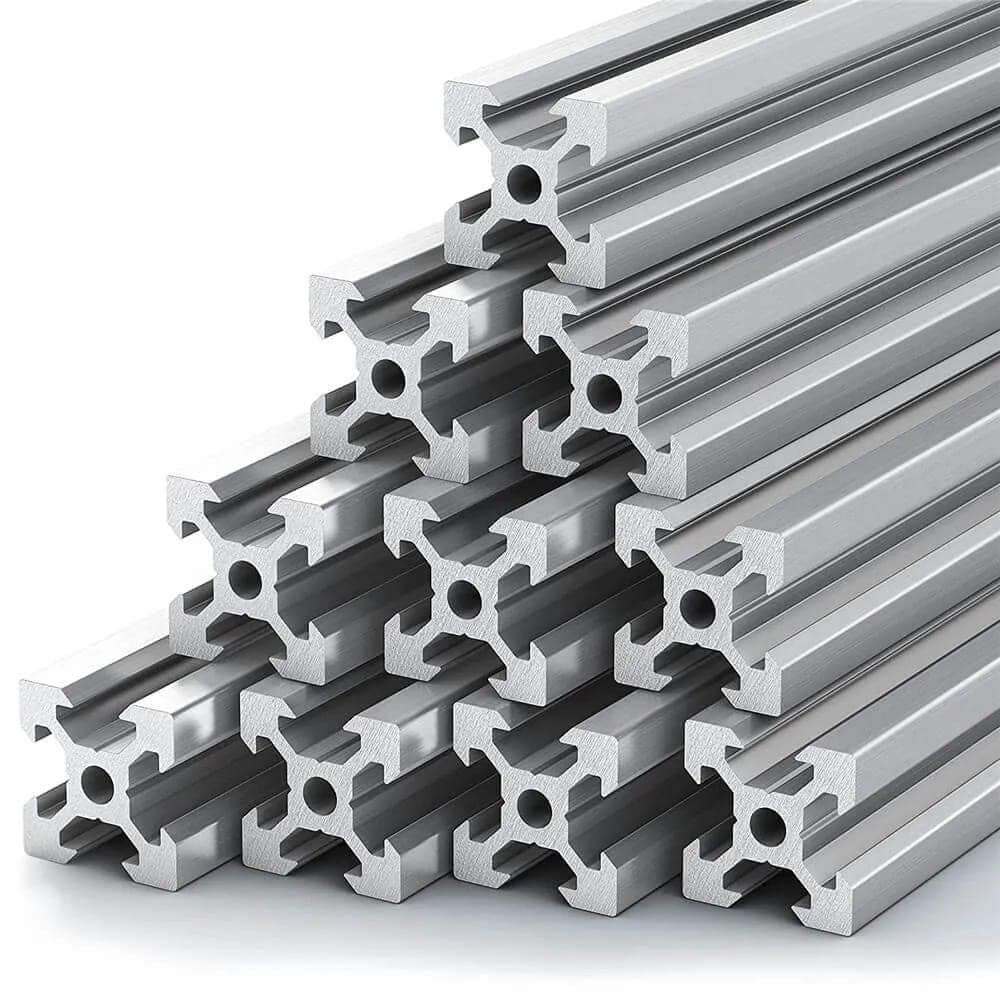

Industrial T-slot profiles
T-slot profiles with cutting, drilling and tapping assessed for your frame requirements. Production is arranged with our own and partner factories, with the scope confirmed for each project.
Start with the profile. Add the processing you need.
Order aluminum profiles and combine the operations your application requires in the same quotation.
Small-batch color anodizing
Blue, red, yellow, green, purple and black color options for small-batch projects. Specify the quantity per color and provide a color sample or reference.
Processing to your drawing
Cutting, hole milling, drilling, welding and stretch bending can be quoted with your profiles. Include hole positions, bend geometry and assembly requirements.
Minimum section size, wall thickness, batch quantity and processing feasibility are confirmed from your drawing. Anodized shades depend on alloy, surface condition and sample approval; white finishes require confirmation of the finishing process.
For your quotation: section drawing · quantity by profile and color · cut lengths · machining or bending drawing · finish reference.
01Have these ready
Six things that turn a slow quote into a fast one.
01
A drawing or sketch of the frame
Shows us the joints, so the machining scope is clear from day one
02
Slot series / profile size (e.g. 20, 30, 40, 45)
Names the die family and the accessories that must fit
03
Alloy preference — 6063 / 6005A / 6082
Trades stiffness against load and budget
04
Anodized colour or mill finish
Clear anodize ships by default; colour needs a call-out
05
Cut lengths and quantity
Feeds the cut plan, the packing and the price
06
Target delivery date
Books the production slot early
02Where it's used

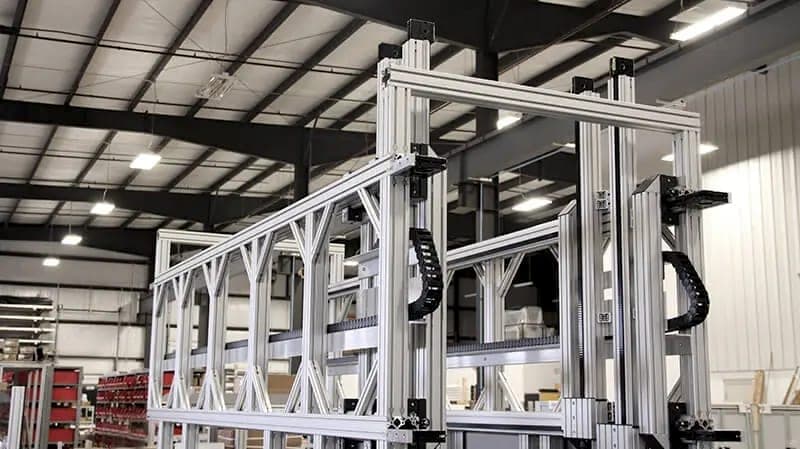

Machine frames & guarding
Bases, enclosures and robot-cell framing with connector machining done before shipping.

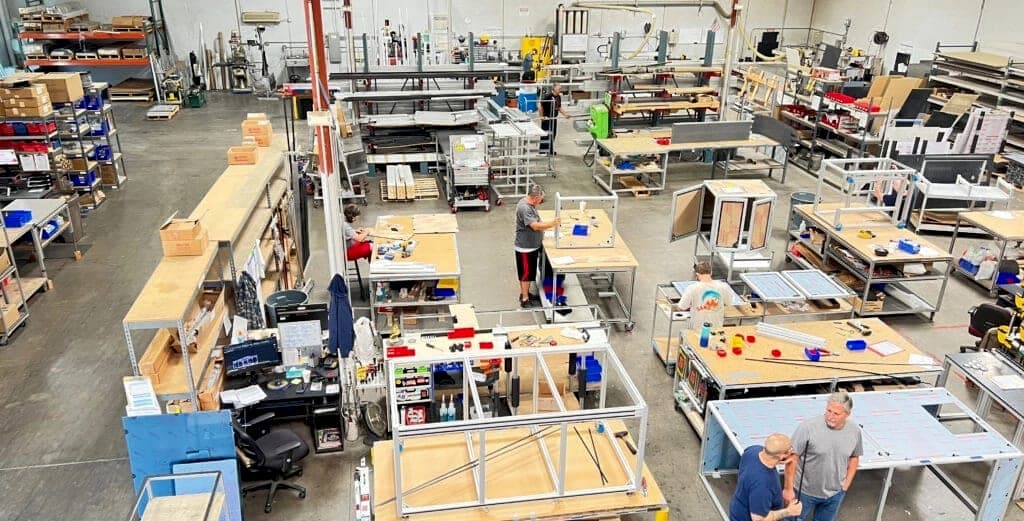

Workstations & fixtures
Benches, jigs and fixtures dimensioned to your layout drawing, delivered as kits.

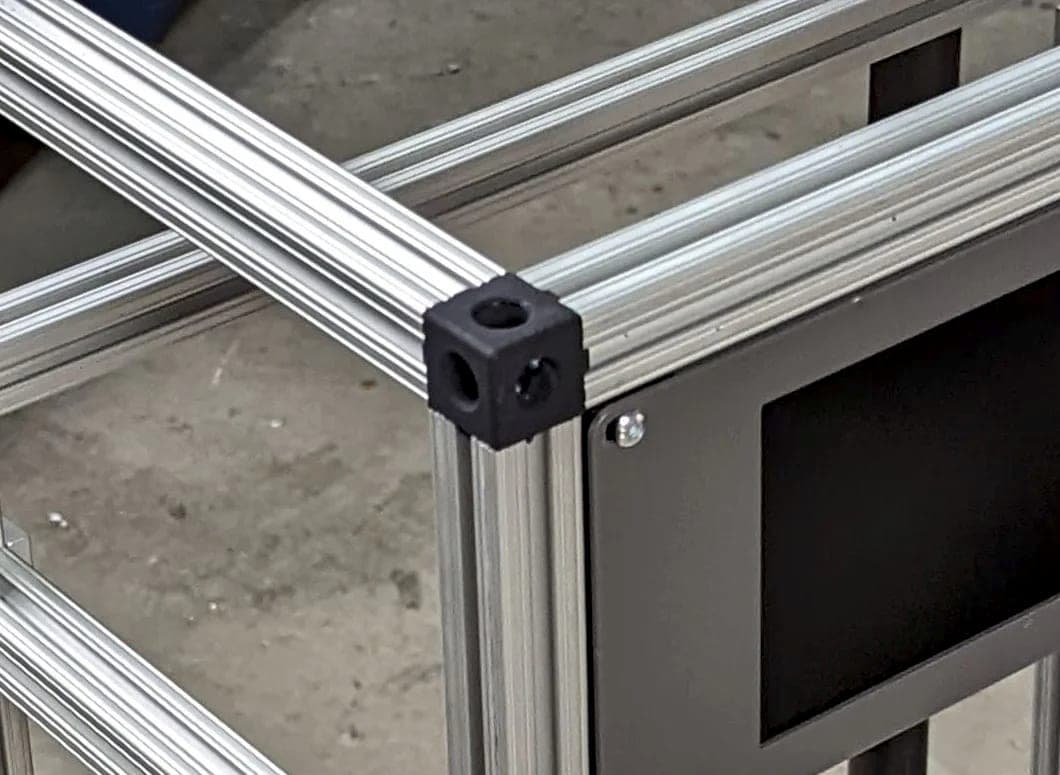

Conveyors & carts
Supports, carts and transfer structures cut to length with the joints pre-machined.
03Specifications
| Parameter | Working range |
|---|---|
| Alloy grades | 6063 / 6005A / 6082 |
| Temper | T5 / T6 |
| Profile length | up to 12,000 mm |
| Wall thickness | from 0.7 mm (0.3 mm on small sections →) |
| Slot series | to your standard framing system |
| Dimensional tolerance | to EN 12020 / ±0.1 mm |
| Surface finish | Mill / Anodized (clear or coloured) |
04Three confirmations before production
01
Can we make it?
Slot geometry, wall and alloy get read against the press range before any promise is made.
02
Machining & finish agreed
Cut lengths, connector drilling and tapping, and the anodize spec go on paper with the quote.
03
Proof before shipping
Dimensional checks — plus material or anodize certificates if you need them — close out the order.
Machining and surface treatment are coordinated according to project requirements — CNC & machining · Finishing.
05Quality & certification
Heat and lot numbers follow every batch
Dimensional reports measured against the signed drawing
Coating-thickness and salt-spray checks on finished surfaces
Third-party inspection arranged on request
ISO 9001:2015 / GB/T 19001-2016
Quality Management System
- Certified scope
- Machining and Surface Treatment of Aluminum Products (Anodizing)
- Certificate no.
- 21826Q00612R101
- Valid until
- 28 Jun 2029
ISO 14001:2015 / GB/T 24001-2016
Environmental Management System
- Certified scope
- Machining and Surface Treatment of Aluminum Products (Anodizing) and related environmental management activities
- Certificate no.
- 21826E00416R101
- Valid until
- 28 Jun 2029
Issued by Shanghai Sailway Certification Co., Ltd. — accredited under CNAS / IAF MLA.
These certificates are held by our manufacturing plant.
Full stamped certificates are available on request. Numbers can be verified with the issuer or through CNAS.
06Frequently asked questions
T-slot aluminium or welded steel — how do we decide?
If the frame will ever be modified, T-slot wins: it bolts together, comes apart and reconfigures without a welder. Steel earns its place only when the load or the operating temperature genuinely exceeds what an aluminium section carries.
Can the profiles arrive ready to bolt together?
That is our standard offer — cutting, drilling, tapping and connector machining happen in this plant, so what lands on your dock assembles with a hex key. Attach the frame drawing and the quote lists each operation.
Will standard T-nuts and brackets fit your profiles?
Yes, because we extrude to the slot series you name — the accessories follow the series, not the supplier. A sample or the series designation is enough for us to confirm fit before production.
Is there a minimum order?
There's no single number — it moves with the section and the finish. Give us sizes and quantities and you get a concrete minimum and price for your exact case.
