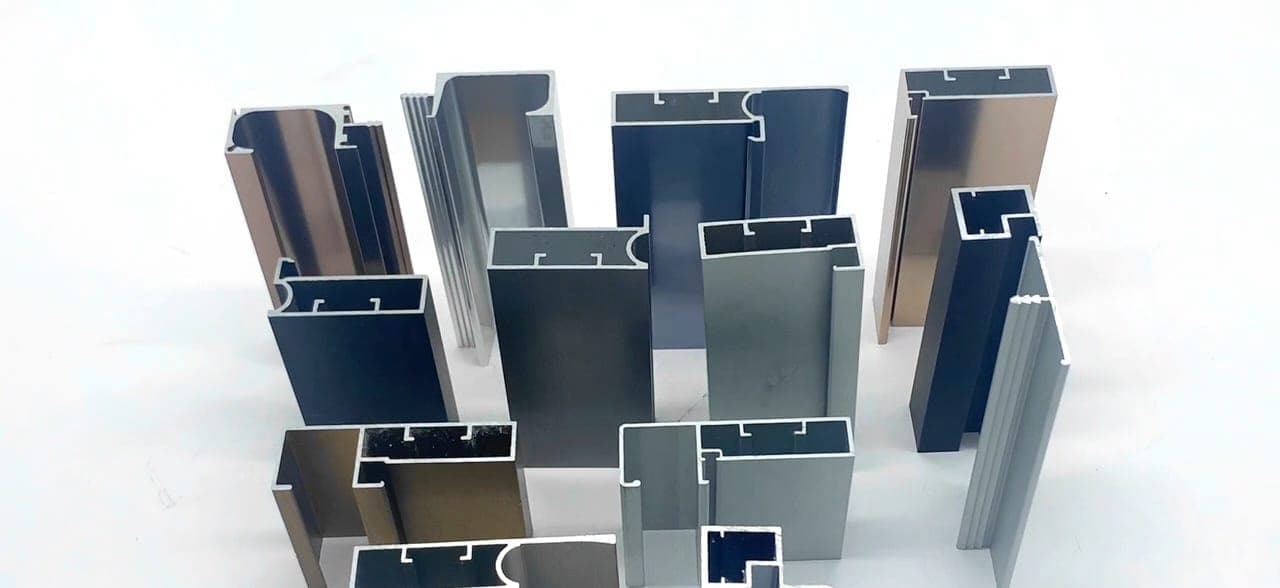

Cabinet aluminium profiles
Furniture profiles delivered as assembly-ready kits — cut, mitred and drilled, not raw lengths.
Start with the profile. Add the processing you need.
Order aluminum profiles and combine the operations your application requires in the same quotation.
Small-batch color anodizing
Blue, red, yellow, green, purple and black color options for small-batch projects. Specify the quantity per color and provide a color sample or reference.
Processing to your drawing
Cutting, hole milling, drilling, welding and stretch bending can be quoted with your profiles. Include hole positions, bend geometry and assembly requirements.
Minimum section size, wall thickness, batch quantity and processing feasibility are confirmed from your drawing. Anodized shades depend on alloy, surface condition and sample approval; white finishes require confirmation of the finishing process.
For your quotation: section drawing · quantity by profile and color · cut lengths · machining or bending drawing · finish reference.
01Have these ready
Six things that turn a slow quote into a fast one.
01
The profile drawing, or a physical reference sample
Fastest way for us to match section and groove
02
Glass or panel thickness
The groove and gasket are designed around it
03
Finish — brushed anodized / wood-grain / powder
This surface is the face of the furniture; the target must be named
04
Colour sample or reference
A retained sample keeps repeat batches on tone
05
Cut sizes, mitres and machining
Tells us whether you want kits or lengths
06
Quantity and target date
Sets tooling, price and the calendar
02Where it's used

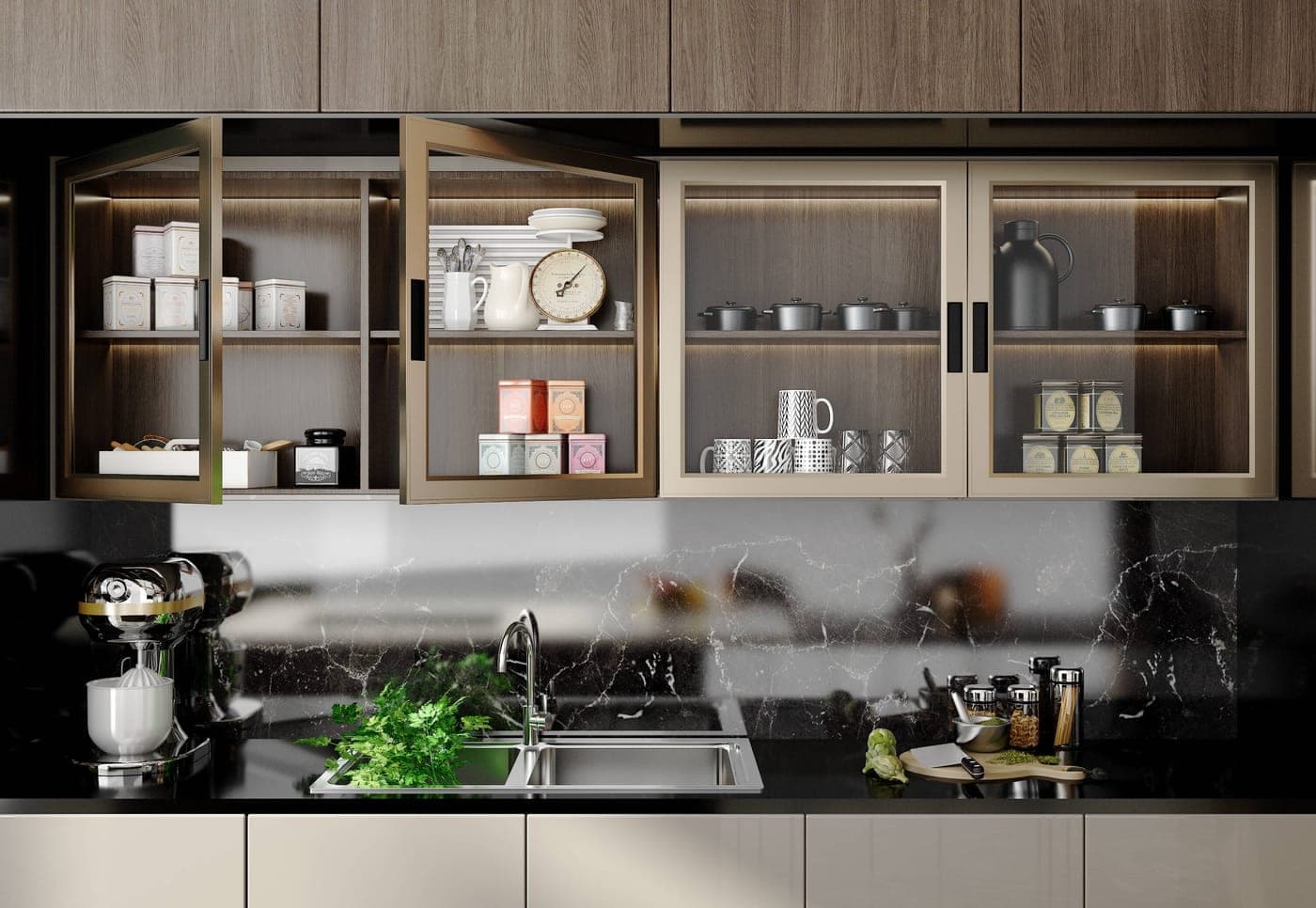

Glass door kits
Slim frames grooved to your glass, mitred at 45° and packed as door sets.

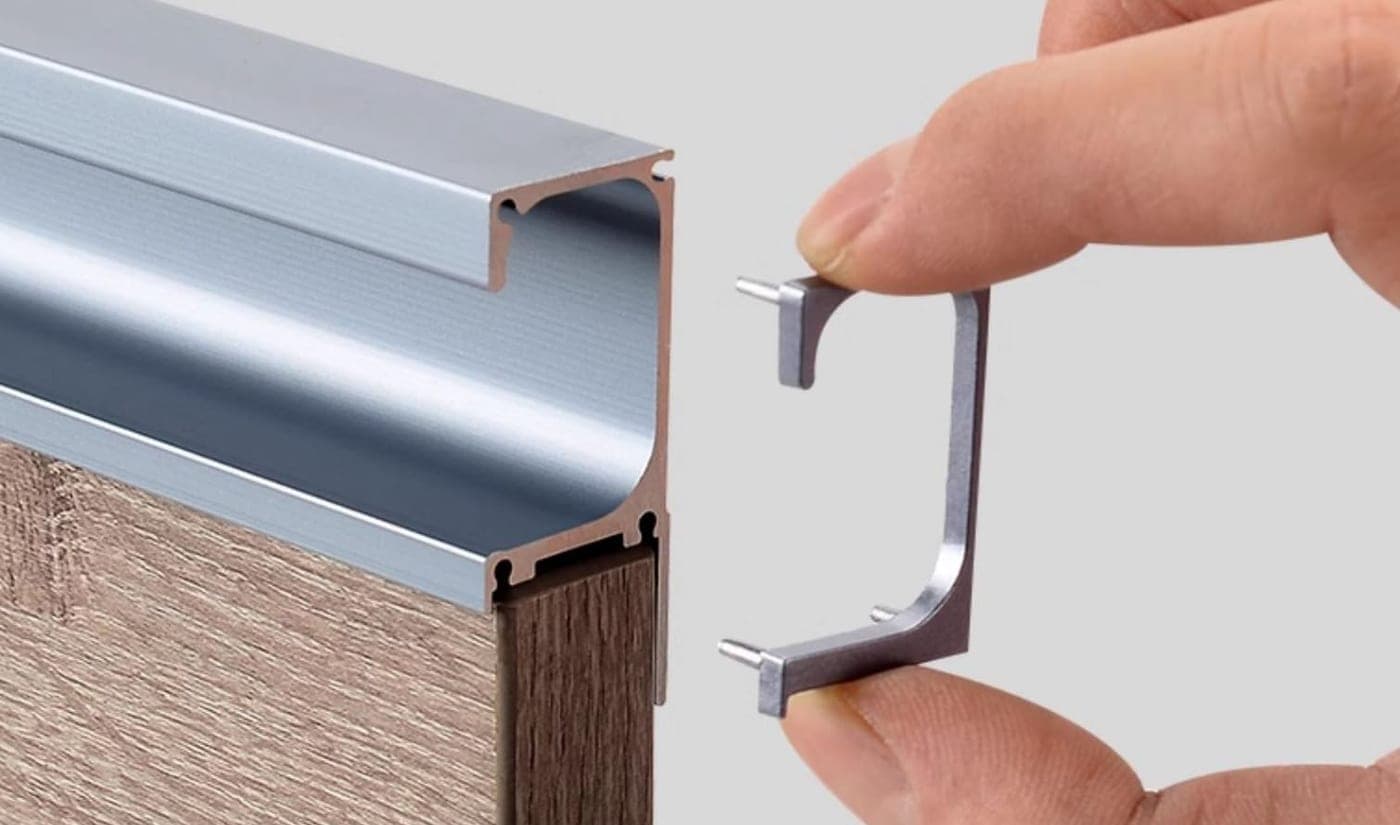

Integrated handles
G-profiles and edge pulls with hinge and slider machining already done.

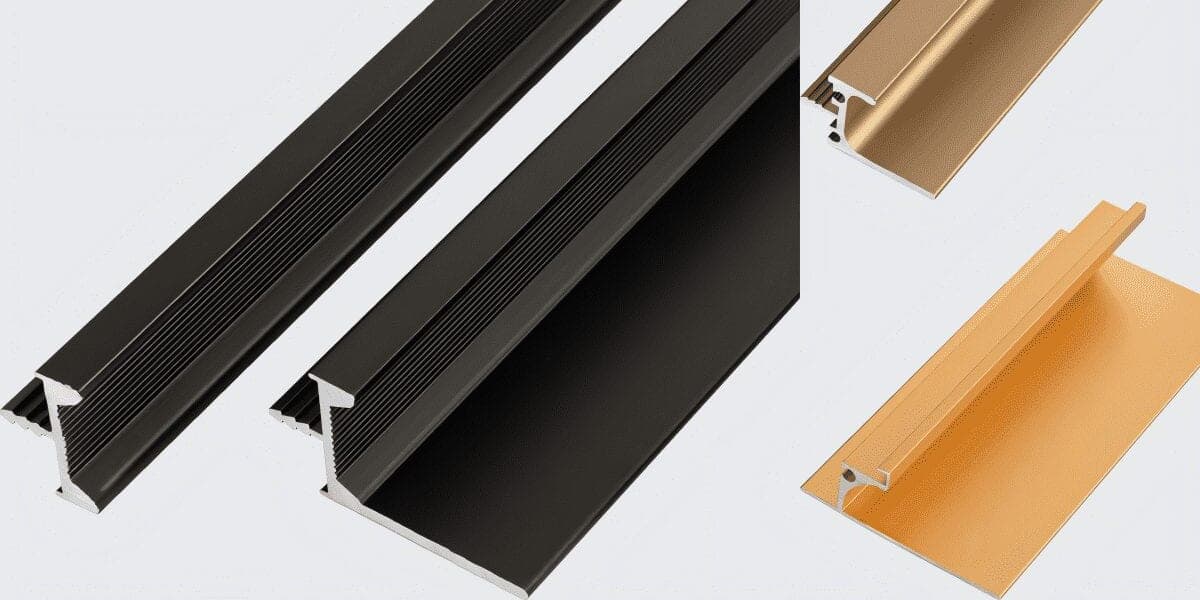

Trims & carcass parts
Plinths, uprights and closing trims that finish the cabinet system.
03Specifications
| Parameter | Working range |
|---|---|
| Alloy grades | 6063 / 6060 |
| Temper | T5 |
| Profile length | up to 12,000 mm / cut-to-size |
| Wall thickness | from 0.7 mm (0.3 mm on small sections →) |
| Glass / panel groove | to your glass or panel spec |
| Dimensional tolerance | to EN 12020 / ±0.1 mm |
| Surface finish | Anodized (brushed / colours) / Wood-grain / Powder-coated |
04Three confirmations before production
01
Can we make it?
Section, wall and glass groove are confirmed extrudable — and the finish confirmed achievable on that alloy.
02
Machining & finish agreed
Cut-to-size, 45° mitres and drilling are locked with the quote, along with the chosen surface — brushed, wood-grain or powder.
03
Proof before shipping
Dimensions are checked and every batch is compared to the retained colour sample before packing.
Machining and surface treatment are coordinated according to project requirements — CNC & machining · Finishing.
05Quality & certification
Heat and lot numbers follow every batch
Dimensional reports measured against the signed drawing
Coating-thickness and salt-spray checks on finished surfaces
Third-party inspection arranged on request
ISO 9001:2015 / GB/T 19001-2016
Quality Management System
- Certified scope
- Machining and Surface Treatment of Aluminum Products (Anodizing)
- Certificate no.
- 21826Q00612R101
- Valid until
- 28 Jun 2029
ISO 14001:2015 / GB/T 24001-2016
Environmental Management System
- Certified scope
- Machining and Surface Treatment of Aluminum Products (Anodizing) and related environmental management activities
- Certificate no.
- 21826E00416R101
- Valid until
- 28 Jun 2029
Issued by Shanghai Sailway Certification Co., Ltd. — accredited under CNAS / IAF MLA.
These certificates are held by our manufacturing plant.
Full stamped certificates are available on request. Numbers can be verified with the issuer or through CNAS.
06Frequently asked questions
What glass thickness can the door frames take?
Whatever your doors use — the groove is extruded to the glass and gasket you specify rather than to a house standard. Send those two dimensions and the groove design comes back confirmed.
Do you ship door kits, or just profile lengths?
Kits are the point of this category: cut to size, mitred at 45°, drilled and machined for hardware, packed set by set. A cut list attached to the RFQ is all it takes.
Colour consistency across reorders — how is it handled?
Every anodize and wood-grain run is judged against a colour sample retained from your approved first batch. You sign off the sample once; after that, matching it is our job, order after order.
Will your machining suit standard cabinet hardware?
Cup hinges, sliders, catches — the machining is done to your hardware drawing, so whatever fittings you buy will land in the right place. Name the hardware and we confirm the pattern.
