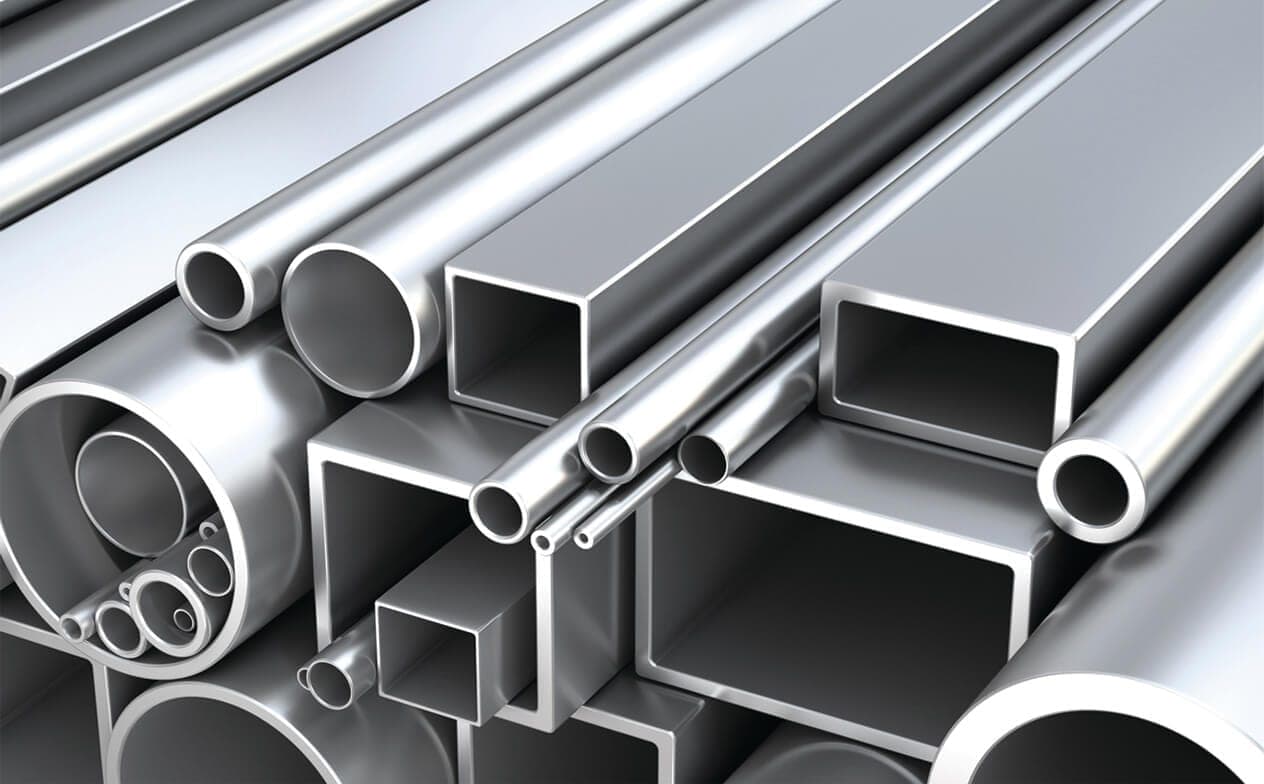

Tube / rod / bar
Tube, rod and bar — as machining stock, or delivered already cut, drilled and turned.
Start with the profile. Add the processing you need.
Order aluminum profiles and combine the operations your application requires in the same quotation.
Small-batch color anodizing
Blue, red, yellow, green, purple and black color options for small-batch projects. Specify the quantity per color and provide a color sample or reference.
Processing to your drawing
Cutting, hole milling, drilling, welding and stretch bending can be quoted with your profiles. Include hole positions, bend geometry and assembly requirements.
Minimum section size, wall thickness, batch quantity and processing feasibility are confirmed from your drawing. Anodized shades depend on alloy, surface condition and sample approval; white finishes require confirmation of the finishing process.
For your quotation: section drawing · quantity by profile and color · cut lengths · machining or bending drawing · finish reference.
01Have these ready
Six things that turn a slow quote into a fast one.
01
Section shape — round, square, rectangular
Points at the die or the stock shelf
02
Outside dimensions and wall thickness
Pins down the exact section
03
Alloy and temper — 6060 / 6061 / 6063 / 6082
Machinability, strength and cost all follow
04
Cut length and quantity
Feeds the cut plan and the price
05
Mill finish or anodized
Fixes the surface before packing
06
Straightness / cosmetic requirement
Becomes the acceptance criterion we test against
02Where it's used
Fabrication stock
Frames, structures and fittings supplied in standard mill lengths.

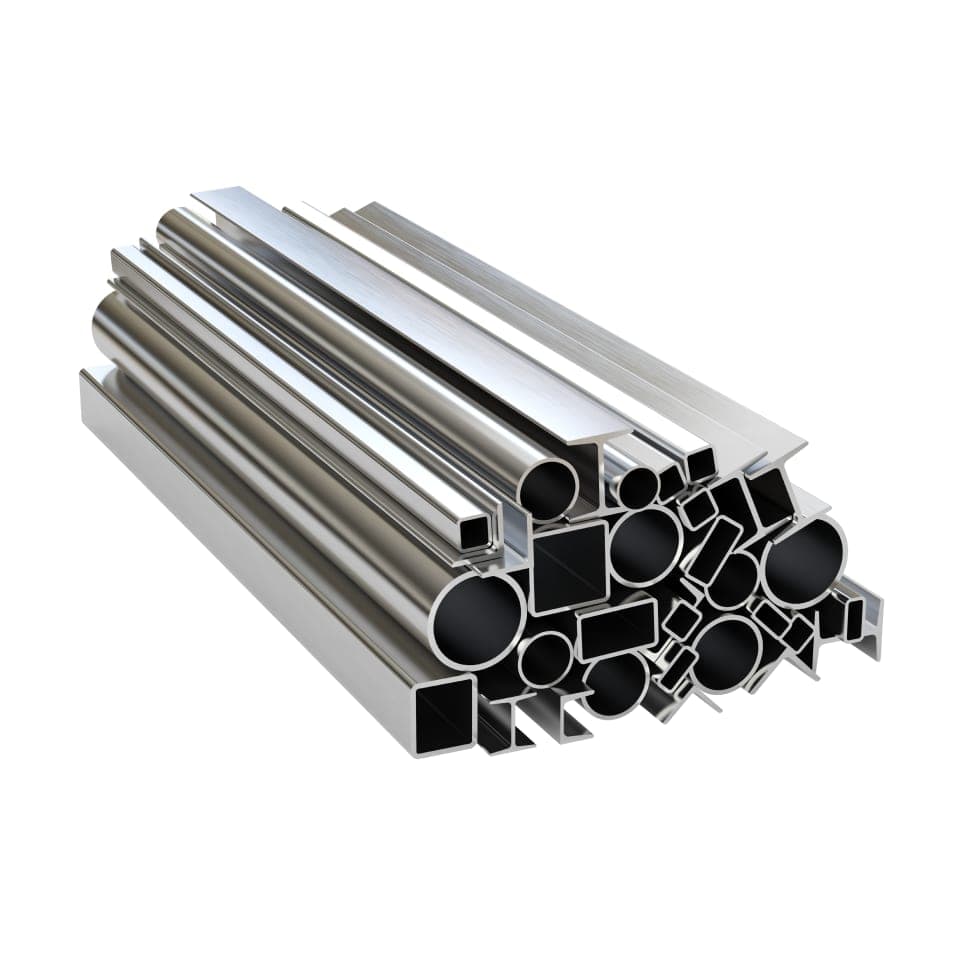

Pre-machined blanks
Round, square and rectangular sections cut and faced ready for your lathe or mill.

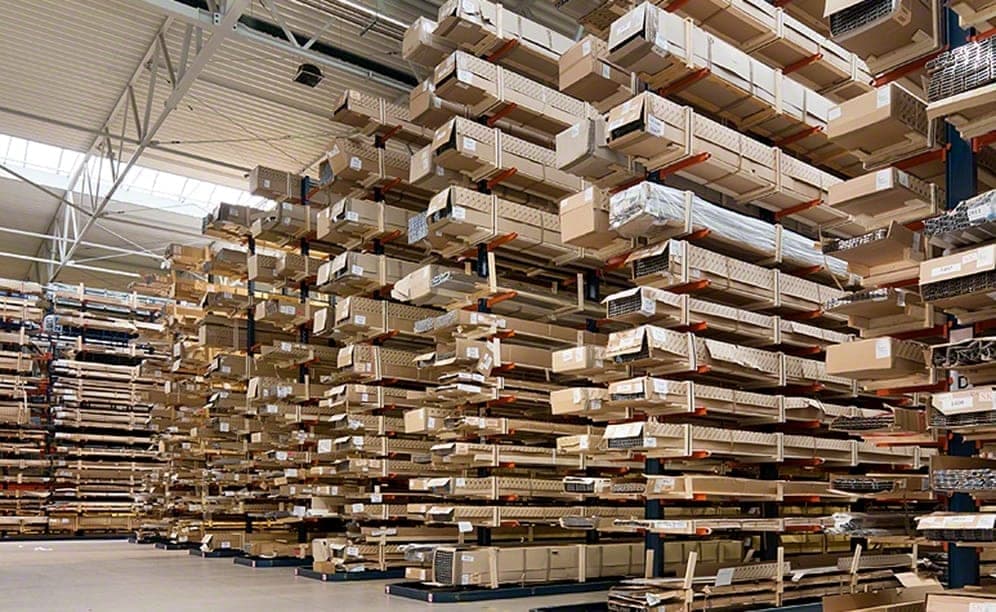

Distributor supply
Repeat-order sections packed and marked for stockists.
03Specifications
| Parameter | Working range |
|---|---|
| Alloy grades | 6060 / 6061 / 6063 / 6082 |
| Temper | T5 / T6 |
| Section | Round / square / rectangular |
| Length | standard stock / cut-to-length |
| Wall thickness | from 0.7 mm (0.3 mm on small sections →) |
| Dimensional tolerance | to EN 12020 / ±0.1 mm |
| Surface finish | Mill / Anodized |
04Three confirmations before production
01
Can we make it?
The section is identified as stock or made-to-order, and the alloy confirmed for your use.
02
Machining & finish agreed
Cut lengths, any drilling or turning, and mill or anodized surface are written into the quote.
03
Proof before shipping
Dimensions and straightness are checked against the agreed criteria, certificates included as needed.
Machining and surface treatment are coordinated according to project requirements — CNC & machining · Finishing.
05Quality & certification
Heat and lot numbers follow every batch
Dimensional reports measured against the signed drawing
Coating-thickness and salt-spray checks on finished surfaces
Third-party inspection arranged on request
ISO 9001:2015 / GB/T 19001-2016
Quality Management System
- Certified scope
- Machining and Surface Treatment of Aluminum Products (Anodizing)
- Certificate no.
- 21826Q00612R101
- Valid until
- 28 Jun 2029
ISO 14001:2015 / GB/T 24001-2016
Environmental Management System
- Certified scope
- Machining and Surface Treatment of Aluminum Products (Anodizing) and related environmental management activities
- Certificate no.
- 21826E00416R101
- Valid until
- 28 Jun 2029
Issued by Shanghai Sailway Certification Co., Ltd. — accredited under CNAS / IAF MLA.
These certificates are held by our manufacturing plant.
Full stamped certificates are available on request. Numbers can be verified with the issuer or through CNAS.
06Frequently asked questions
Stock sections or extrude-to-order?
Common sections move as stock; anything else is extruded to your drawing. Dimensions and quantity in the RFQ tell us which shelf — or which press — your order comes from, and the quote says so.
Best alloy for parts we'll machine ourselves?
6061 and 6082 cut cleanly and hold strength; 6060 and 6063 suit lighter, form-heavy work. If you tell us the part instead of just the bar, the recommendation covers temper too.
Cut-to-length with a straightness spec — possible?
Routine. State the acceptance criterion — straightness per metre, end-cut squareness, cosmetic class — and it is quoted and tested as written, not interpreted later.
What's the minimum quantity?
It varies by section and alloy, so we would rather price your actual numbers than publish a figure that misleads. Sizes plus quantities gets you a real minimum by return.
